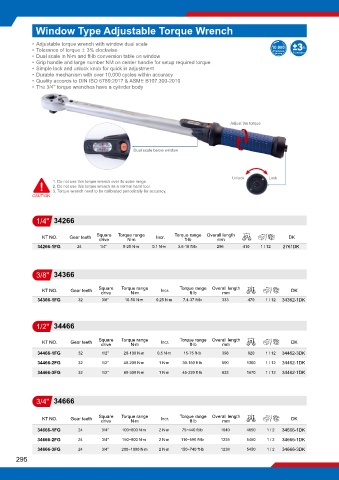

Window Type Adjustable Torque Wrench

• Adjustable torque wrench with window dual scale 3
• Tolerance of torque ± 3% clockwise 10,000
• Dual scale in N‧m and ft‧lb conversion table on window
• Grip handle and large number NM on center handle for setup required torque
• Simple lock and unlock knob for quick in adjustment
• Durable mechanism with over 10,000 cycles within accuracy
• Quality accords to DIN ISO 6789:2017 & ASME B107.300-2010
• The 3/4" torque wrenches have a cylinder body

Adjust the torque

Dual scale below window

Unlock Lock
1. Do not use this torque wrench over its scale range.
2. Do not use this torque wrench as a normal hand tool.
3. Torque wrench need to be calibrated periodically for accuracy.
CAUTION

1/4'' 34266

KT NO. Gear teeth Square Torque range Incr. Torque range Overall length g DK
mm
drive
ft‧lb
N‧m
34266-1FG 24 1/4" 5-25 N‧m 0.1 N‧m 3.6-18 ft‧lb 296 410 1 / 12 2761DK

3/8'' 34366

KT NO. Gear teeth Square Torque range Incr. Torque range Overall length g DK
mm
ft‧lb
drive
N‧m
34366-1FG 32 3/8" 10-50 N‧m 0.25 N‧m 7.4-37 ft‧lb 333 470 1 / 12 34362-1DK
1/2'' 34466

KT NO. Gear teeth Square Torque range Incr. Torque range Overall length g DK
N‧m
mm
ft‧lb
drive
34466-1FG 32 1/2" 20-100 N‧m 0.5 N‧m 15-75 ft‧lb 398 820 1 / 12 34462-3DK
34466-2FG 32 1/2" 40-200 N‧m 1 N‧m 30-150 ft‧lb 500 1300 1 / 12 34462-1DK
34466-3FG 32 1/2" 60-300 N‧m 1 N‧m 45-220 ft‧lb 633 1470 1 / 12 34462-1DK

3/4'' 34666

KT NO. Gear teeth Square Torque range Incr. Torque range Overall length g DK
N‧m
mm
drive
ft‧lb
34666-1FG 24 3/4" 100~600 N‧m 2 N‧m 75~440 ft‧lb 1040 4650 1 / 2 34666-1DK
34666-2FG 24 3/4" 150~800 N‧m 2 N‧m 110~590 ft‧lb 1235 5450 1 / 2 34666-1DK
34666-3FG 24 3/4" 200~1000 N‧m 2 N‧m 150~740 ft‧lb 1238 5450 1 / 2 34666-3DK
