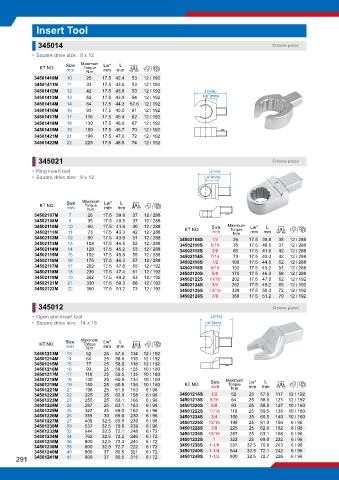

Page 332 - 蓝带金统立KINGTONY2025年样本

Insert Tool

345014 Chrome plated
• Square drive size : 9 x 12

L
KT NO. Size Maximum Lw* mm g
Torque
mm
mm
N.m
34501410M 10 25 17.5 42.4 53 12 / 192
34501411M 11 33 17.5 43.0 53 12 / 192
34501412M 12 42 17.5 43.8 53 12 / 192 L(mm)
34501413M 13 52 17.5 43.9 54 12 / 192 Lw*(mm)
34501414M 14 64 17.5 44.3 57.6 12 / 192
34501416M 16 93 17.5 45.0 61 12 / 192
34501417M 17 110 17.5 45.4 62 12 / 192
34501418M 18 130 17.5 46.0 67 12 / 192
34501419M 19 150 17.5 46.7 70 12 / 192
34501421M 21 198 17.5 47.6 72 12 / 192
34501422M 22 225 17.5 48.5 74 12 / 192

345021 Chrome plated

• Ring insert tool L(mm)
• Square drive size : 9 x 12 Lw*(mm)

L
KT NO. Size Maximum Lw* mm g
Torque
mm
mm
N.m
34502107M 7 26 17.5 39.8 37 12 / 288
34502108M 8 35 17.5 40.5 37 12 / 288
34502110M 10 60 17.5 41.6 40 12 / 288 Size Maximum Lw* L g
34502111M 11 73 17.5 43.3 42 12 / 288 KT NO. inch Torque mm mm
N.m
34502112M 12 90 17.5 43.8 51 12 / 288 34502108S 1/4 26 17.5 39.8 38 12 / 288
34502113M 13 108 17.5 44.5 52 12 / 288 34502110S 5/16 35 17.5 40.5 37 12 / 288
34502114M 14 128 17.5 45.2 53 12 / 288 34502112S 3/8 60 17.5 41.6 42 12 / 288
34502115M 15 152 17.5 45.9 55 12 / 288 34502114S 7/16 73 17.5 43.3 42 12 / 288
34502116M 16 175 17.5 46.3 57 12 / 288 34502116S 1/2 108 17.5 44.5 52 12 / 288
34502117M 17 202 17.5 47.0 55 12 / 192 34502118S 9/16 152 17.5 45.2 53 12 / 288
34502118M 18 230 17.5 47.4 61 12 / 192 34502120S 5/8 175 17.5 46.3 58 12 / 288
34502119M 19 262 17.5 49.2 63 12 / 192 34502122S 11/16 202 17.5 47.0 62 12 / 192
34502121M 21 330 17.5 50.3 68 12 / 192 34502124S 3/4 262 17.5 49.2 65 12 / 192
34502122M 22 360 17.5 51.2 73 12 / 192 34502126S 13/16 330 17.5 50.3 72 12 / 192
34502128S 7/8 360 17.5 51.2 70 12 / 192
345012 Chrome plated

• Open end insert tool L(mm)
• Square drive size : 14 x 18 Lw*(mm)

L
KT NO. Size Maximum Lw* mm g
Torque
mm
mm
N.m
34501213M 13 52 25 57.5 114 12 / 192
34501214M 14 64 25 58.0 115 12 / 192
34501215M 15 77 25 58.0 118 12 / 192
34501216M 16 93 25 58.5 125 10 / 160
34501217M 17 110 25 59.5 135 10 / 160
34501218M 18 130 25 60.0 134 10 / 160 Size Maximum Lw* L
34501219M 19 150 25 60.5 136 10 / 160 KT NO. inch Torque mm mm g
34501221M 21 198 25 61.0 153 6 / 96 N.m
34501222M 22 225 25 62.0 158 6 / 96 34501216S 1/2 52 25 57.5 117 12 / 192
34501223M 23 255 25 63.1 166 6 / 96 34501218S 9/16 64 25 58.0 121 12 / 192
34501224M 24 287 25 63.1 163 6 / 96 34501220S 5/8 93 25 58.5 127 10 / 160
34501225M 25 322 25 69.0 162 6 / 96 34501222S 11/16 110 25 59.5 135 10 / 160
34501226M 26 359 30 69.0 230 6 / 96 34501224S 3/4 150 25 60.5 140 10 / 160
34501227M 27 400 32.5 69.0 239 6 / 96 34501226S 13/16 198 25 61.0 156 6 / 96
34501230M 30 537 32.5 70.6 239 6 / 96 34501228S 7/8 225 25 62.0 162 6 / 96
34501232M 32 644 32.5 72.1 248 6 / 72 34501230S 15/16 287 25 63.1 168 6 / 96
34501234M 34 762 32.5 73.2 246 6 / 72
34501236M 36 800 32.5 73.3 244 6 / 72 34501232S 1 322 25 69.0 232 6 / 96
34501238M 38 800 32.5 72.7 222 6 / 72 34501236S 1-1/8 537 32.5 70.6 243 6 / 96
34501240M 40 800 37 80.5 321 6 / 72 34501240S 1-1/4 644 32.5 72.1 242 6 / 96
291 34501241M 41 800 37 80.5 315 6 / 72 34501248S 1-1/2 800 32.5 72.7 226 6 / 96
