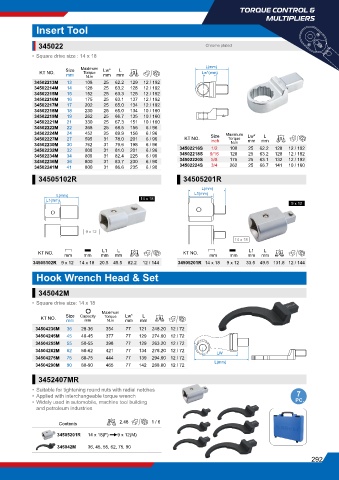

Page 333 - 蓝带金统立KINGTONY2025年样本

TORQUE CONTROL &
MULTIPLIERS
Insert Tool

345022 Chrome plated

• Square drive size : 14 x 18
L(mm)
L
Torque
KT NO. Size Maximum Lw* mm g Lw*(mm)
mm
mm
N.m
34502213M 13 108 25 62.2 129 12 / 192
34502214M 14 128 25 63.2 128 12 / 192
34502215M 15 152 25 63.3 125 12 / 192
34502216M 16 175 25 63.1 137 12 / 192
34502217M 17 202 25 65.0 134 12 / 192
34502218M 18 230 25 65.0 134 10 / 160
34502219M 19 262 25 66.7 135 10 / 160
34502221M 21 330 25 67.3 151 10 / 160
34502222M 22 368 25 68.5 156 6 / 96
34502224M 24 452 25 69.9 156 6 / 96 Size Maximum Lw* L
34502227M 27 595 31 78.0 201 6 / 96 KT NO. inch Torque mm mm g
34502230M 30 762 31 79.6 198 6 / 96 N.m
34502232M 32 800 31 81.0 201 6 / 96 34502216S 1/2 108 25 62.2 128 12 / 192
34502234M 34 800 31 82.4 225 6 / 90 34502218S 9/16 128 25 63.2 128 12 / 192
34502236M 36 800 31 83.7 230 6 / 90 34502220S 5/8 175 25 63.1 132 12 / 192
34502241M 41 800 31 86.6 235 6 / 90 34502224S 3/4 262 25 66.7 141 10 / 160
34505102R 34505201R

L(mm)
L(mm) L1(mm)
L1(mm) 14 x 18
9 x 12

9 x 12
14 x 18
L
L1
L1
L
KT NO. mm mm mm mm g KT NO. mm mm mm mm g
34505102R 9 x 12 14 x 18 20.5 45.5 82.2 12 / 144 34505201R 14 x 18 9 x 12 33.5 49.5 131.8 12 / 144
Hook Wrench Head & Set

345042M

• Square drive size: 14 x 18
Maximum
L
KT NO. Size Capacity Torque Lw* mm g
mm
mm
mm
N.m
34504236M 36 28-36 354 77 121 248.20 12 / 72
34504245M 45 40-45 377 77 129 274.00 12 / 72
34504255M 55 50-55 398 77 129 263.20 12 / 72
34504262M 62 58-62 421 77 134 278.20 12 / 72
LW
34504275M 75 68-75 444 77 139 294.60 12 / 72
L(mm)
34504290M 90 80-90 465 77 142 288.80 12 / 72
3452407MR
• Suitable for tightening round nuts with radial notches
• Applied with interchangeable torque wrench 7
• Widely used in automobile, machine tool building PC.
and petroleum industries

Contents kg 2.48 1 / 6

34505201R 14 x 18(F) 9 x 12(M)
345042M 36, 45, 55, 62, 75, 90
