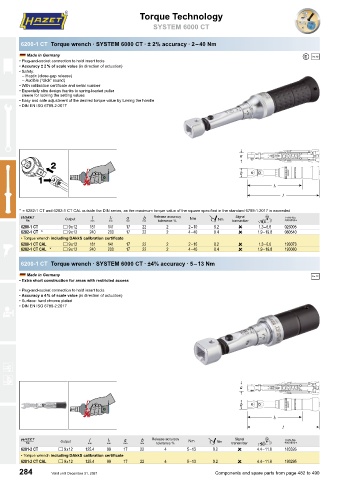

Page 285 - HAZET英文2021

Torque Technology Torque Technology

SYSTEM 6000 CT SYSTEM 6000 CT

6200-1 CT Torque wrench ∙ SYSTEM 6000 CT ∙ ± 2% accuracy ∙ 2 – 40 Nm

Made in Germany / B
• Plug-and-socket connection to hold insert tools
• Accuracy ± 2 % of scale value (in direction of actuation)
• Safety:
– Haptic (close-gap release)
– Audible (“click” sound)
• With calibration certificate and serial number
• Especially slim design thanks to spring-loaded puller
sleeve for locking the setting values
• Easy and safe adjustment of the desired torque value by turning the handle
• DIN EN ISO 6789-2:2017

* = 6282-1 CT and 6282-1 CT CAL outside the DIN series, as the maximum torque value of the square specified in the standard 6789-1:2017 is exceeded
1 Output K M 1 5 Release accuracy ! Å Nm transmitter # 4
Signal
tolerance %
6280-1 CT ) 9 x 12 181 141 17 22 2 2 – 10 0.2  1.3 – 6.6 026005
6282-1 CT * ) 9 x 12 240 200 17 22 2 4 – 40 0.4  1.9 – 19.8 080540
• Torque wrench including DAkkS calibration certificate
6280-1 CT CAL ) 9 x 12 181 141 17 22 2 2 – 10 0.2  1.3 – 6.6 193073
6282-1 CT CAL * ) 9 x 12 240 200 17 22 2 4 – 40 0.4  1.9 – 19.8 193080

6200-1 CT Torque wrench ∙ SYSTEM 6000 CT ∙ ±4% accuracy ∙ 5 – 13 Nm

Made in Germany B
• Extra short construction for areas with restricted access
• Plug-and-socket connection to hold insert tools
• Accuracy ± 4 % of scale value (in direction of actuation)
• Surface: hard chrome plated
• DIN EN ISO 6789-2:2017

1 Output K M 1 5 Release accuracy ! Å Nm transmitter # 4
Signal
tolerance %
6281-2 CT ) 9 x 12 125.4 99 17 22 4 5 – 13 0.2  4.4 – 11.8 183326
• Torque wrench including DAkkS calibration certificate
6281-2 CT CAL ) 9 x 12 125.4 99 17 22 4 5 – 13 0.2  4.4 – 11.8 193295
284 Valid until December 31, 2021 Components and spare parts from page 482 to 490
