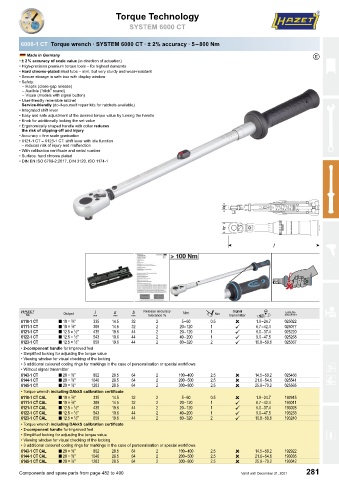

Page 282 - HAZET英文2021

Torque Technology

SYSTEM 6000 CT

6000-1 CT Torque wrench ∙ SYSTEM 6000 CT ∙ ± 2% accuracy ∙ 5 – 800 Nm

Made in Germany /
• ± 2 % accuracy of scale value (in direction of actuation)
• High-precision premium torque tools – for highest demands
• Hard chrome-plated steel tube – slim, but very sturdy and wear-resistant
• Secure storage in safe box with display window
• Safety:
– Haptic (close-gap release)
– Audible (“click” sound)
– Visual (models with signal button)
• User-friendly reversible ratchet
Service-friendly (do-it-yourself repair kits for ratchets available)
• Integrated shift lever
• Easy and safe adjustment of the desired torque value by turning the handle
• Knob for additionally locking the set value
• Ergonomically shaped handle with collar reduces
the risk of slipping-off and injury
• Accuracy – fine scale graduation
• 6121-1 CT – 6123-1 CT: shift lever with idle function
– reduces risk of injury and malfunction
• With calibration certificate and serial number
• Surface: hard chrome plated
• DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1

1 Output K 1 5 Release accuracy ! Å Nm transmitter # 4
Signal
tolerance %
3
6110-1 CT i 10 = ⁄8″ 335 14.5 32 2 5 – 60 0.5  1.9 – 24.7 025022
6111-1 CT i 10 = ⁄8″ 389 14.5 32 2 20 – 120 1  6.7 – 42.4 025077
3
1
6121-1 CT i 12.5 = ⁄2″ 435 19.6 44 2 20 – 120 1  6.0 – 37.4 025220
6122-1 CT i 12.5 = ⁄2″ 543 19.6 44 2 40 – 200 1  9.0 – 47.5 025268
1
6123-1 CT i 12.5 = ⁄2″ 659 19.6 44 2 60 – 320 2  10.8 – 59.6 025367
1
• 2-component handle for improved feel
• Simplified locking for adjusting the torque value
• Viewing window for visual checking of the locking
• 3 additional coloured coding rings for markings in the case of personalisation or special workflows
• Without signal transmitter
3
6143-1 CT i 20 = ⁄4″ 802 28.5 64 2 100 – 400 2.5  14.5 – 59.2 025466
6144-1 CT i 20 = ⁄4″ 1046 28.5 64 2 200 – 500 2.5  21.6 – 54.6 025541
3
6145-1 CT i 20 = ⁄4″ 1283 28.5 64 2 300 – 800 2.5  25.9 – 70.2 025565
3
• Torque wrench including DAkkS calibration certificate
6110-1 CT CAL i 10 = ⁄8″ 335 14.5 32 2 5 – 60 0.5  1.9 – 24.7 192915
3
6111-1 CT CAL i 10 = ⁄8″ 389 14.5 32 2 20 – 120 1  6.7 – 42.4 193011
3
1
6121-1 CT CAL i 12.5 = ⁄2″ 435 19.6 44 2 20 – 120 1  6.0 – 37.4 193028
1
6122-1 CT CAL i 12.5 = ⁄2″ 543 19.6 44 2 40 – 200 1  9.0 – 47.5 193233
1
6123-1 CT CAL i 12.5 = ⁄2″ 659 19.6 44 2 60 – 320 2  10.8 – 59.6 193240
• Torque wrench including DAkkS calibration certificate
• 2-component handle for improved feel
• Simplified locking for adjusting the torque value
• Viewing window for visual checking of the locking
• 3 additional coloured coding rings for markings in the case of personalisation or special workflows
3
6143-1 CT CAL i 20 = ⁄4″ 802 28.5 64 2 100 – 400 2.5  14.5 – 59.2 192922
6144-1 CT CAL i 20 = ⁄4″ 1046 28.5 64 2 200 – 500 2.5  21.6 – 54.6 193035
3
6145-1 CT CAL i 20 = ⁄4″ 1283 28.5 64 2 300 – 800 2.5  25.9 – 70.2 193042
3
Components and spare parts from page 482 to 490 Valid until December 31, 2021 281
