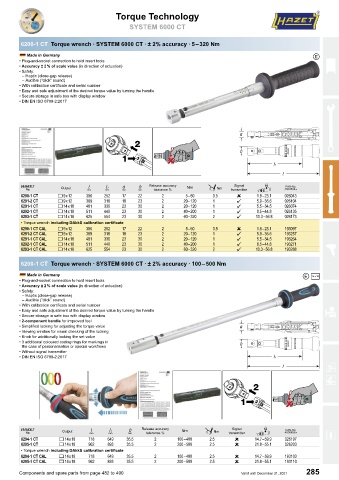

Torque Technology

SYSTEM 6000 CT

6200-1 CT Torque wrench ∙ SYSTEM 6000 CT ∙ ± 2% accuracy ∙ 5 – 320 Nm

Made in Germany /
• Plug-and-socket connection to hold insert tools
• Accuracy ± 2 % of scale value (in direction of actuation)
• Safety:
– Haptic (close-gap release)
– Audible (“click” sound)
• With calibration certificate and serial number
• Easy and safe adjustment of the desired torque value by turning the handle
• Secure storage in safe box with display window
• DIN EN ISO 6789-2:2017

1 Output K M 1 5 Release accuracy ! Å Nm transmitter # 4
Signal
tolerance %
6290-1 CT ) 9 x 12 306 252 17 22 2 5 – 60 0.5  1.8 – 23.1 026043
6291-2 CT ) 9 x 12 389 318 18 23 2 20 – 120 1  5.9 – 36.6 026104
6291-1 CT ) 14 x 18 401 330 23 30 2 20 – 120 1  5.5 – 34.5 026074
6292-1 CT ) 14 x 18 511 440 23 30 2 40 – 200 1  8.5 – 44.8 026135
6293-1 CT ) 14 x 18 625 554 23 30 2 60 – 320 2  10.3 – 56.8 026173
• Torque wrench including DAkkS calibration certificate
6290-1 CT CAL ) 9 x 12 306 252 17 22 2 5 – 60 0.5  1.8 – 23.1 193097
6291-2 CT CAL ) 9 x 12 389 318 18 23 2 20 – 120 1  5.9 – 36.6 193257
6291-1 CT CAL ) 14 x 18 401 330 23 30 2 20 – 120 1  5.5 – 34.5 193264
6292-1 CT CAL ) 14 x 18 511 440 23 30 2 40 – 200 1  8.5 – 44.8 193271
6293-1 CT CAL ) 14 x 18 625 554 23 30 2 60 – 320 2  10.3 – 56.8 193288

6200-1 CT Torque wrench ∙ SYSTEM 6000 CT ∙ ± 2% accuracy ∙ 100 – 500 Nm

Made in Germany / D
• Plug-and-socket connection to hold insert tools
• Accuracy ± 2 % of scale value (in direction of actuation)
• Safety:
– Haptic (close-gap release)
– Audible (“click” sound)
• With calibration certificate and serial number
• Easy and safe adjustment of the desired torque value by turning the handle
• Secure storage in safe box with display window
• 2-component handle for improved feel
• Simplified locking for adjusting the torque value
• Viewing window for visual checking of the locking
• Knob for additionally locking the set value
• 3 additional coloured coding rings for markings in
the case of personalisation or special workflows
• Without signal transmitter
• DIN EN ISO 6789-2:2017

1 Output K M 5 Release accuracy ! Å Nm transmitter # 4
Signal
tolerance %
6294-1 CT ) 14 x 18 718 649 35.5 2 100 – 400 2.5  14.7 – 59.9 026197
6295-1 CT ) 14 x 18 962 893 35.5 2 200 – 500 2.5  21.8 – 55.1 026203
• Torque wrench including DAkkS calibration certificate
6294-1 CT CAL ) 14 x 18 718 649 35.5 2 100 – 400 2.5  14.7 – 59.9 193103
6295-1 CT CAL ) 14 x 18 962 893 35.5 2 200 – 500 2.5  21.8 – 55.1 193110

Components and spare parts from page 482 to 490 Valid until December 31, 2021 285
