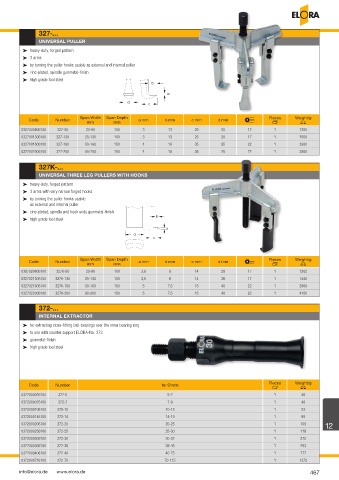

Page 467 - ELORA-Tool_Catalogue_E95

327-...
UNIVERSAL PULLER

³ heavy-duty, forged pattern
³ 3 arms
³ by turning the puller hooks usable as external and internal puller
³ zinc-plated, spindle gunmetal-finish
³ high grade tool steel

Span Width Span Depth Pieces Weight/g
Code Number a mm b mm c mm d mm w
mm mm U V
0327000806100 327-80 20-90 100 3 13 25 20 17 1 1300
0327001306100 327-130 25-130 100 3 13 25 20 17 1 1500
0327001606100 327-160 50-160 150 4 16 35 25 22 1 3980
0327002006100 327-200 60-200 150 4 16 35 25 22 1 3900

327K-...
UNIVERSAL THREE LEG PULLERS WITH HOOKS
³ heavy duty, forged pattern
³ 3 arms with very narrow forged hooks
³ by turning the puller hooks usable
as external and internal puller
³ zinc-plated, spindle and hook ends gunmetal-finish
³ high grade tool steel

Span Width Span Depth Pieces Weight/g
Code Number a mm b mm c mm d mm w
mm mm U V
0327020806100 327K-80 20-90 100 3,6 8 14 28 17 1 1262
0327021306100 327K-130 25-130 100 3,6 8 14 28 17 1 1446
0327021606100 327K-160 50-160 150 5 7,5 15 40 22 1 3900
0327022006100 327K-200 60-200 150 5 7,5 15 40 22 1 4150

372-...
INTERNAL EXTRACTOR
³ for extracting close-fitting ball-bearings over the inner bearing ring
³ to use with counter support ELORA-No. 373
³ gunmetal-finish
³ high grade tool steel

Code Number for Ø mm Pieces Weight/g
U V
0372000056100 372-5 5-7 1 49
0372000076100 372-7 7-9 1 49
0372000106100 372-10 10-13 1 53
0372000146100 372-14 14-19 1 89
0372000206100 372-20 20-25 1 109 12
0372000256100 372-25 25-30 1 118
0372000306100 372-30 30-37 1 275
0372000386100 372-38 38-45 1 293
0372000406100 372-40 40-75 1 777
0372000716100 372-70 70-115 1 1372

info@elora.de www.elora.de 467
