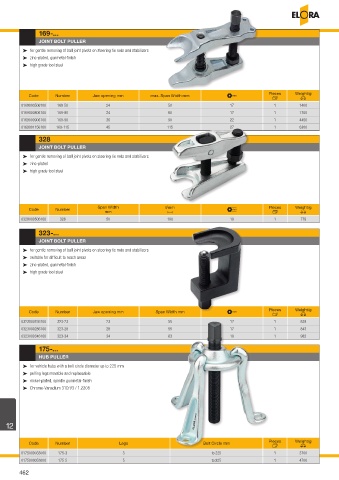

Page 462 - ELORA-Tool_Catalogue_E95

169-...
JOINT BOLT PULLER

³ for gentle removing of ball joint pivots on steering tie rods and stabilizers
³ zinc-plated, gunmetal-finish
³ high grade tool steel

Code Number Jaw opening mm max. Span Width mm w Pieces Weight/g
U
V
0169000506100 169-50 24 50 17 1 1400
0169000806100 169-80 24 80 17 1 1700
0169000906100 169-90 36 90 22 1 4450
0169001156100 169-115 45 115 27 1 6300

328
JOINT BOLT PULLER
³ for gentle removing of ball joint pivots on steering tie rods and stabilizers
³ zinc-plated
³ high grade tool steel

Span Width l/mm Pieces Weight/g
Code Number w
mm T U V
0328000506100 328 50 100 19 1 779
323-...
JOINT BOLT PULLER
³ for gentle removing of ball joint pivots on steering tie rods and stabilizers
³ suitable for difficult to reach areas
³ zinc-plated, gunmetal-finish
³ high grade tool steel

Code Number Jaw opening mm Span Width mm w Pieces Weight/g
V
U
0323000236100 323-23 23 55 17 1 839
0323000286100 323-28 28 55 17 1 843
0323000346100 323-34 34 63 19 1 982

175-...
HUB PULLER
³ for vehicle hubs with a bolt circle diameter up to 225 mm
³ pulling legs movable and replaceable
³ nickel-plated, spindle gunmetal-finish
³ Chrome-Vanadium 31CrV3 / 1.2208

12

Code Number Legs Bolt Circle mm Pieces Weight/g
U V
0175000033000 175-3 3 to 225 1 3700
0175000053000 175-5 5 to 225 1 4700

462
