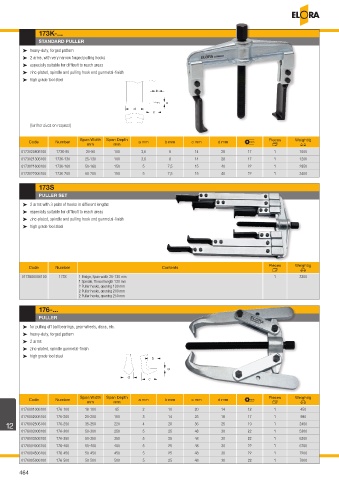

Page 464 - ELORA-Tool_Catalogue_E95

173K-...
STANDARD PULLER

³ heavy-duty, forged pattern
³ 2 arms, with very narrow forged pulling hooks
³ especially suitable for difficult to reach areas
³ zinc-plated, spindle and pulling hook end gunmetal-finish
³ high grade tool steel

(further sizes on request)

Span Width Span Depth Pieces Weight/g
Code Number a mm b mm c mm d mm w
mm mm U V
0173020806100 173K-80 20-90 100 3,6 8 14 28 17 1 1000
0173021306100 173K-130 25-130 100 3,6 8 14 28 17 1 1200
0173021606100 173K-160 50-160 150 5 7,5 15 40 22 1 2850
0173022006100 173K-200 60-200 150 5 7,5 15 40 22 1 3400
173S
PULLER SET
³ 2 arms with 3 pairs of hooks in different lengths
³ especially suitable for difficult to reach areas
³ zinc-plated, spindle and pulling hook end gunmetal-finish
³ high grade tool steel

Code Number Contents Pieces Weight/g
U V
0173500006100 173S 1 Bridge, Span width 25-130 mm 1 3300
1 Spindle, Thread length 130 mm
2 Puller hooks, opening 100 mm
2 Puller hooks, opening 200 mm
2 Puller hooks, opening 250 mm

176-...
PULLER
³ for pulling off ball bearings, gear-wheels, discs, etc.
³ heavy-duty, forged pattern
³ 2 arms
³ zinc-plated, spindle gunmetal-finish
³ high grade tool steel

Span Width Span Depth Pieces Weight/g
Code Number a mm b mm c mm d mm w
mm mm U V
0176001006100 176-100 18-100 85 2 10 20 14 12 1 450
0176002006100 176-200 20-200 150 3 14 25 18 17 1 980
12 0176002506100 176-250 35-250 220 4 20 36 25 19 1 2450
0176003006100 176-300 50-300 250 5 25 48 30 22 1 5300
0176003506100 176-350 50-350 350 5 25 48 30 22 1 6300
0176004006100 176-400 50-400 400 5 25 48 30 22 1 6700
0176004506100 176-450 50-450 450 5 25 48 30 22 1 7200
0176005006100 176-500 50-500 500 5 25 48 30 22 1 7000

464
