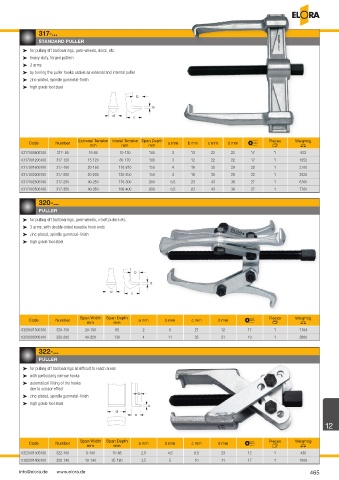

Page 465 - ELORA-Tool_Catalogue_E95

317-...
STANDARD PULLER

³ for pulling off ball bearings, gear-wheels, discs, etc.
³ heavy-duty, forged pattern
³ 2 arms
³ by turning the puller hooks usable as external and internal puller
³ zinc-plated, spindle gunmetal-finish
³ high grade tool steel

Extrenal Tension Interal Tension Span Depth Pieces Weight/g
Code Number a mm b mm c mm d mm w
mm mm mm U V
0317000806100 317- 80 15-80 70-130 100 3 12 22 22 17 1 922
0317001206100 317-120 15-120 80-170 100 3 12 22 22 17 1 1052
0317001606100 317-160 20-160 110-210 150 4 18 30 29 22 1 2700
0317002006100 317-200 20-200 120-250 150 4 18 30 29 22 1 2920
0317002506100 317-250 40-250 170-300 200 6,5 23 43 38 27 1 6760
0317003506100 317-350 40-350 190-400 200 6,5 23 43 38 27 1 7760

320-...
PULLER
³ for pulling off ball bearings, gear-wheels, v-belt pullers etc.
³ 3 arms, with double-sided useable hook ends
³ zinc-plated, spindle gunmetal-finish
³ high grade tool steel

Span Width Span Depth Pieces Weight/g
Code Number a mm b mm c mm d mm w
mm mm U V
0320001506100 320-150 20-150 85 2 9 21 12 17 1 1184
0320002006100 320-200 40-220 130 4 11 25 21 19 1 2800

322-...
PULLER
³ for pulling off ball bearings at difficult to reach areas
³ with particularly narrow hooks
³ automatical fitting of the hooks
due to scissor effect
³ zinc-plated, spindle gunmetal-finish
³ high grade tool steel

12

Span Width Span Depth Pieces Weight/g
Code Number a mm b mm c mm d mm w
mm mm U V
0322001006100 322-100 6-100 70-85 2,5 4,5 8,5 23 12 1 430
0322001406100 322-140 10-140 85-120 3,5 5 10 31 17 1 1008

info@elora.de www.elora.de 465
