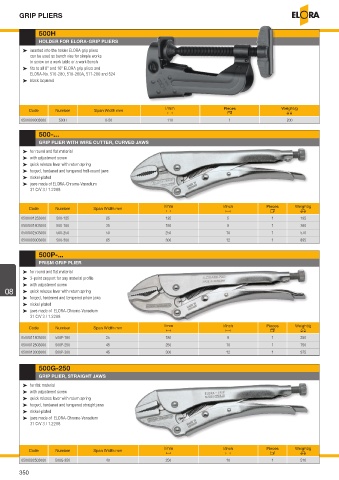

Page 350 - ELORA-Tool_Catalogue_E95

GRIP PLIERS

500H
HOLDER FOR ELORA-GRIP PLIERS

³ inserted into the holder ELORA grip pliers
can be used as bench vise for simple works
to screw on a work table or a work bench
³ fits to all 8" and 10" ELORA grip pliers and
ELORA-No. 510-280, 510-280A, 511-280 and 524
³ black laquered

Code Number Span Width mm l/mm Pieces Weight/g
T U V
0500000003000 500H 0-50 110 1 200
500-...

GRIP PLIER WITH WIRE CUTTER, CURVED JAWS
³ for round and flat material
³ with adjustment screw
³ quick release lever with return spring
³ forged, hardened and tempered half-round jaws
³ nickel-plated
³ jaws made of ELORA-Chrome-Vanadium
31 CrV 3 / 1.2208

Code Number Span Width mm l/mm l/Inch Pieces Weight/g
T T U V
0500001253000 500-125 25 125 5 1 195
0500001803000 500-180 35 180 8 1 360
0500002503000 500-250 50 250 10 1 570
0500003003000 500-300 65 300 12 1 895

500P-...
PRISM GRIP PLIER
³ for round and flat material
³ 3-point support for any material profile
³ with adjustment screw
08 ³ quick release lever with return spring
³ forged, hardened and tempered prism jaws
³ nickel-plated
³ jaws made of ELORA-Chrome-Vanadium
31 CrV 3 / 1.2208
l/mm l/Inch Pieces Weight/g
Code Number Span Width mm
T T U V
0500011803000 500P-180 25 180 8 1 280
0500012503000 500P-250 45 250 10 1 750
0500013003000 500P-300 45 300 12 1 975

500G-250
GRIP PLIER, STRAIGHT JAWS
³ for flat material
³ with adjustment screw
³ quick release lever with return spring
³ forged, hardened and tempered straight jaws
³ nickel-plated
³ jaws made of ELORA-Chrome-Vanadium
31 CrV 3 / 1.2208

l/mm l/Inch Pieces Weight/g
Code Number Span Width mm
T T U V
0500202503000 500G-250 40 250 10 1 510
350
