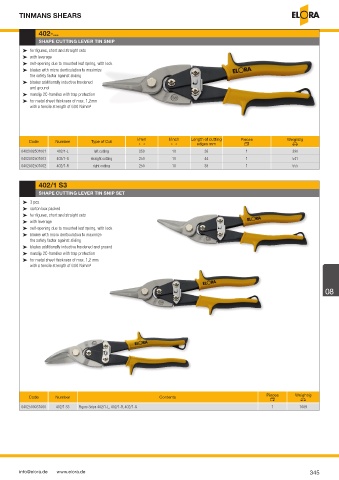

Page 345 - ELORA-Tool_Catalogue_E95

TINMANS SHEARS

402-...
SHAPE CUTTING LEVER TIN SNIP

³ for figures, short and straight cuts
³ with leverage
³ self-opening due to mounted leaf spring, with lock
³ blades with micro denticulation to maximize
the safety factor against sliding
³ blades additionally inductive hardened
and ground
³ nonslip 2C-handles with trap protection
³ for metal sheet thickness of max. 1,2mm
with a tensile strength of 600 N/mm²

Code Number Type of Cut l/mm l/Inch Length of cutting Pieces Weight/g
T T edges mm U V
0402002501001 402/1-L left cutting 250 10 38 1 390
0402002501003 402/1-G straight cutting 250 10 44 1 541
0402002501002 402/1-R right cutting 250 10 38 1 555

402/1 S3
SHAPE CUTTING LEVER TIN SNIP SET
³ 3 pcs.
³ carton box packed
³ for figures, short and straight cuts
³ with leverage
³ self-opening due to mounted leaf spring, with lock
³ blades with micro denticulation to maximize
the safety factor against sliding
³ blades additionally inductive hardened and ground
³ nonslip 2C-handles with trap protection
³ for metal sheet thickness of max. 1,2 mm
with a tensile strength of 600 N/mm²

08

Code Number Contents Pieces Weight/g
U V
0402500031000 402/1 S3 Figure Snips 402/1-L, 402/1-R, 402/1-G 1 1689

info@elora.de www.elora.de 345
