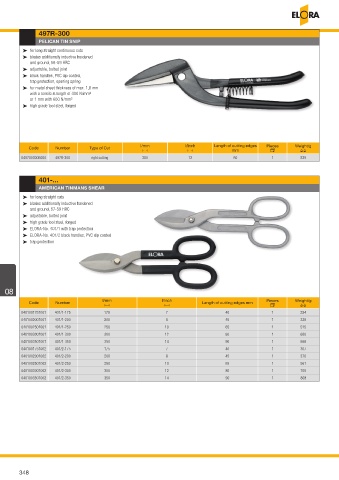

497R-300
PELICAN TIN SNIP

³ for long straight continuous cuts
³ blades additionally inductive hardened
and ground, 56-59 HRC
³ adjustable, bolted joint
³ black handles, PVC dip coated,
trap protection, opening spring
³ for metal sheet thickness of max. 1,8 mm
with a tensile strength of 400 N/mm²
or 1 mm with 600 N/mm²
³ high grade tool steel, forged

Code Number Type of Cut l/mm l/Inch Length of cutting edges Pieces Weight/g
T T mm U V
0497003006000 497R-300 right cutting 300 12 60 1 839

401-...

AMERICAN TINMANS SHEAR
³ for long straight cuts
³ blades additionally inductive hardened
and ground, 57-59 HRC
³ adjustable, bolted joint
³ high grade tool steel, forged
³ ELORA-No. 401/1 with trap protection
³ ELORA-No. 401/2 black handles, PVC dip coated
³ trap protection

08

Code Number l/mm l/Inch Length of cutting edges mm Pieces Weight/g
T T U V
0401001751001 401/1-175 175 7 40 1 294
0401002001001 401/1-200 200 8 45 1 338
0401002501001 401/1-250 250 10 65 1 515
0401003001001 401/1-300 300 12 80 1 680
0401003501001 401/1-350 350 14 90 1 868
0401001751002 401/2-175 175 7 40 1 307
0401002001002 401/2-200 200 8 45 1 376
0401002501002 401/2-250 250 10 65 1 561
0401003001002 401/2-300 300 12 80 1 705
0401003501002 401/2-350 350 14 90 1 868

348
