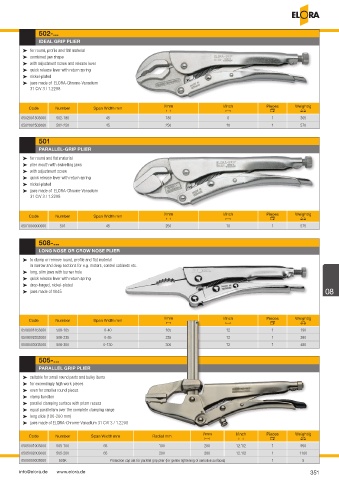

Page 351 - ELORA-Tool_Catalogue_E95

502-...
IDEAL GRIP PLIER

³ for round, profile and flat material
³ combined jaw shape
³ with adjustment screw and release lever
³ quick release lever with return spring
³ nickel-plated
³ jaws made of ELORA-Chrome-Vanadium
31 CrV 3 / 1.2208

l/mm l/Inch Pieces Weight/g
Code Number Span Width mm
T T U V
0502001803000 502-180 45 180 8 1 365
0502002503000 502-250 45 250 10 1 570

501
PARALLEL-GRIP PLIER
³ for round and flat material
³ plier mouth with swivelling jaws
³ with adjustment screw
³ quick release lever with return spring
³ nickel-plated
³ jaws made of ELORA-Chrome-Vanadium
31 CrV 3 / 1.2208

Code Number Span Width mm l/mm l/Inch Pieces Weight/g
T T U V
0501000000000 501 45 250 10 1 575

508-...
LONG NOSE OR CROW NOSE PLIER
³ to clamp or remove round, profile and flat material
in narrow and deep sections for e.g. motors, control cabinets etc.
³ long, slim jaws with burner hole
³ quick release lever with return spring
³ drop-forged, nickel-plated
³ jaws made of 1045 08

l/mm l/Inch Pieces Weight/g
Code Number Span Width mm
T T U V
0508001653000 508-165 0-40 165 12 1 190
0508002353000 508-235 0-55 235 12 1 380
0508003003000 508-300 0-130 300 12 1 480

505-...
PARALLEL GRIP PLIER
³ suitable for small round parts and bulky items
³ for exceedingly high work pieces
³ even for smaller round pieces
³ clamp function
³ parallel clamping surface with prism recess
³ equal parallelism over the complete clamping range
³ long slide (100-200 mm)
³ jaws made of ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208

Code Number Span Width mm Radial mm l/mm l/Inch Pieces Weight/g
T T U V
0505001003000 505-100 65 100 280 12.1/2 1 950
0505002003000 505-200 65 200 280 12.1/2 1 1100
0505000003000 505K Protection cap set for parallel grip plier (for gentle tightening of sensitive surfaces) 1 5
