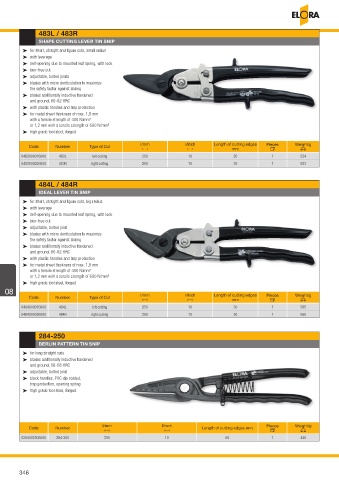

483L / 483R
SHAPE CUTTING LEVER TIN SNIP

³ for short, straight and figure cuts, small radius
³ with leverage
³ self-opening due to mounted leaf spring, with lock
³ burr-free cut
³ adjustable, bolted joints
³ blades with micro denticulation to maximize
the safety factor against sliding
³ blades additionally inductive hardened
and ground, 60-62 HRC
³ with plastic handles and trap protection
³ for metal sheet thickness of max. 1,8 mm
with a tensile strength of 400 N/mm²
or 1,2 mm with a tensile strength of 600 N/mm²
³ high grade tool steel, forged

l/mm l/Inch Length of cutting edges Pieces Weight/g
Code Number Type of Cut
T T mm U V
0483000016000 483L left cutting 250 10 35 1 524
0483000026000 483R right cutting 250 10 35 1 523

484L / 484R
IDEAL LEVER TIN SNIP
³ for short, straight and figure cuts, big radius
³ with leverage
³ self-opening due to mounted leaf spring, with lock
³ burr-free cut
³ adjustable, bolted joint
³ blades with micro denticulation to maximize
the safety factor against sliding
³ blades additionally inductive hardened
and ground, 60-62 HRC
³ with plastic handles and trap protection
³ for metal sheet thickness of max. 1,8 mm
with a tensile strength of 400 N/mm²
or 1,2 mm with a tensile strength of 600 N/mm²
³ high grade tool steel, forged
08
Code Number Type of Cut l/mm l/Inch Length of cutting edges Pieces Weight/g
T T mm U V
0484000016000 484L left cutting 250 10 30 1 565
0484000026000 484R right cutting 250 10 30 1 565

284-250
BERLIN PATTERN TIN SNIP
³ for long straight cuts
³ blades additionally inductive hardened
and ground, 56-58 HRC
³ adjustable, bolted joint
³ black handles, PVC dip coated,
trap protection, opening spring
³ high grade tool steel, forged

Code Number l/mm l/Inch Length of cutting edges mm Pieces Weight/g
T T U V
0284002506000 284-250 250 10 60 1 446
