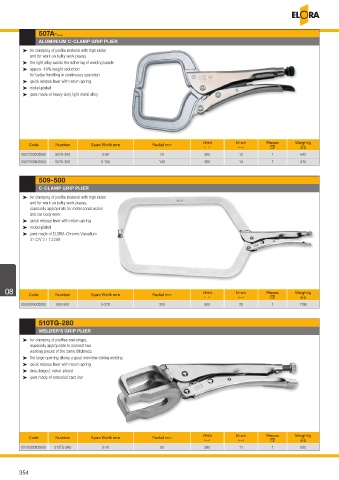

P. 354

507A-...
               ALUMINIUM C-CLAMP GRIP PLIER

         ³   for clamping of profile material with high racks
            and for work on bulky work pieces
         ³   the light alloy avoids the adhering of welding beads
         ³   approx. 40% weight reduction
            for better handling in continuous operation
         ³   quick release lever with return spring
         ³   nickel-plated
         ³   jaws made of heavy-duty light metal alloy









                                                                        l/mm        l/Inch     Pieces    Weight/g
           Code      Number      Span Width mm         Radial mm
                                                                         T           T          U          V
         0507203003000  507A-300     0-90                70              300         12         1          640
         0507203603000  507A-360     0-180               140             360         14         1          870

               509-500

               C-CLAMP GRIP PLIER
         ³   for clamping of profile material with high racks
            and for work on bulky work pieces,
            especially appropirate for metal construction
            and car body work
         ³   quick release lever with return spring
         ³   nickel-plated
         ³   jaws made of ELORA-Chrome-Vanadium
            31 CrV 3 / 1.2208









   08                                                                   l/mm        l/Inch     Pieces    Weight/g
                                                       Radial mm
                                 Span Width mm
                     Number
           Code
                                                                         T           T          U          V
         0509005003000  509-500      0-270               300             500         20         1         1785
               510TG-280
               WELDER'S GRIP PLIER
         ³   for clamping of profiles and straps,
            especially appropriate to connect two
            working pieces of the same thickness
         ³   the large opening allows a good overview during welding
         ³   quick release lever with return spring
         ³   drop-forged, nickel-plated
         ³   jaws made of annealed cast iron











           Code      Number      Span Width mm         Radial mm        l/mm        l/Inch     Pieces    Weight/g
                                                                         T           T          U          V
         0510302803000  510TG-280    0-70                80              280         11         1          935



        354
