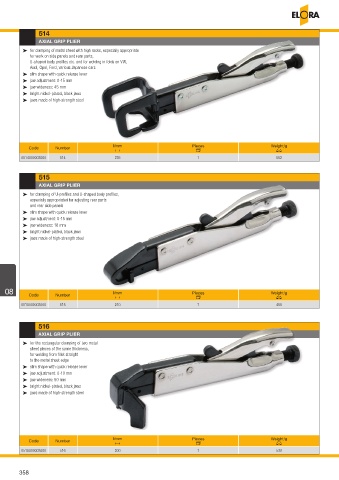

P. 358

514
               AXIAL GRIP PLIER

         ³   for clamping of metal sheet with high racks, especially appropriate
            for work on side panels and rear parts,
            U-shaped body profiles etc. and for welding in folds on VW,
            Audi, Opel, Ford, various Japanese cars
         ³   slim shape with quick release lever
         ³   jaw adjustment: 0-15 mm
         ³   jaw wideness: 45 mm
         ³   bright nickel-plated, black jaws
         ³   jaws made of high-strength steel








           Code      Number              l/mm                        Pieces                     Weight/g
                                         T                            U                           V
         0514000003000  514              235                          1                           552


               515
               AXIAL GRIP PLIER
         ³   for clamping of U-profiles and U-shaped body profiles,
            especially appropriated for adjusting rear parts
            and rear side panels
         ³   slim shape with quick release lever
         ³   jaw adjustment: 0-15 mm
         ³   jaw wideness: 18 mm
         ³   bright nickel-plated, black jaws
         ³   jaws made of high-strength steel









   08                                    l/mm                        Pieces                     Weight/g
           Code      Number
                                         T                            U                           V
         0515000003000  515              210                          1                           455



               516
               AXIAL GRIP PLIER
         ³   for the rectangular clamping of two metal
            sheet pieces of the same thickness,
            for welding from fillet straight
            to the metal sheet edge
         ³   slim shape with quick release lever
         ³   jaw adjustment: 0-10 mm
         ³   jaw wideness: 50 mm
         ³   bright nickel-plated, black jaws
         ³   jaws made of high-strength steel








           Code      Number              l/mm                        Pieces                     Weight/g
                                         T                            U                           V
         0516000003000  516              200                          1                           530



        358
