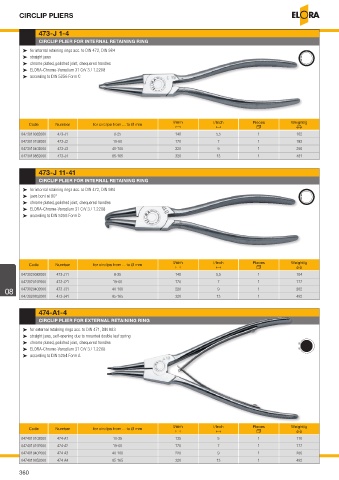

Page 360 - ELORA-Tool_Catalogue_E95

CIRCLIP PLIERS

473-J 1-4
CIRCLIP PLIER FOR INTERNAL RETAINING RING

³ for internal retaining rings acc. to DIN 472, DIN 984
³ straight jaws
³ chrome plated, polished joint, chequered handles
³ ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
³ according to DIN 5256 Form C

Code Number for circlips from ... to Ø mm l/mm l/Inch Pieces Weight/g
T T U V
0473010082000 473-J1 8-25 140 5,5 1 102
0473010192000 473-J2 19-60 170 7 1 182
0473010402000 473-J3 40-100 220 9 1 256
0473010852000 473-J4 85-165 320 13 1 481

473-J 11-41
CIRCLIP PLIER FOR INTERNAL RETAINING RING
³ for internal retaining rings acc. to DIN 472, DIN 984
³ jaws bent at 90°
³ chrome plated, polished joint, chequered handles
³ ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
³ according to DIN 5256 Form D

Code Number for circlips from ... to Ø mm l/mm l/Inch Pieces Weight/g
T T U V
0473020082000 473-J11 8-25 140 5,5 1 104
0473020192000 473-J21 19-60 170 7 1 177
08 0473020402000 473-J31 40-100 220 9 1 262
0473020852000 473-J41 85-165 320 13 1 492

474-A1-4
CIRCLIP PLIER FOR EXTERNAL RETAINING RING
³ for external retaining rings acc. to DIN 471, DIN 983
³ straight jaws, self-opening due to mounted double leaf spring
³ chrome plated, polished joint, chequered handles
³ ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
³ according to DIN 5254 Form A

Code Number for circlips from ... to Ø mm l/mm l/Inch Pieces Weight/g
T T U V
0474010102000 474-A1 10-25 135 5 1 110
0474010192000 474-A2 19-60 170 7 1 177
0474010402000 474-A3 40-100 220 9 1 266
0474010852000 474-A4 85-165 320 13 1 492
