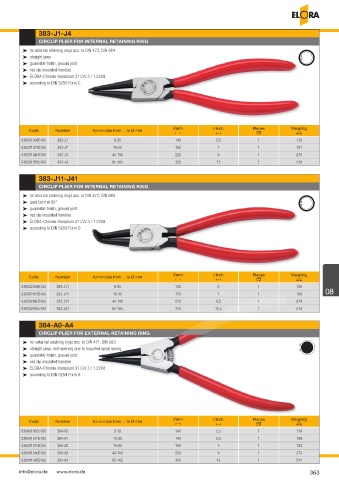

Page 363 - ELORA-Tool_Catalogue_E95

383-J1-J4
CIRCLIP PLIER FOR INTERNAL RETAINING RING

³ for internal retaining rings acc. to DIN 472, DIN 984
³ straight jaws
³ gunmetal-finish, ground joint
³ red dip insulated handles
³ ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
³ according to DIN 5256 Form C

l/mm l/Inch Pieces Weight/g
Code Number for circlips from ... to Ø mm
T T U V
0383010085100 383-J1 8-25 140 5,5 1 119
0383010195100 383-J2 19-60 180 7 1 191
0383010405100 383-J3 40-100 220 9 1 276
0383010855100 383-J4 85-165 320 13 1 516

383-J11-J41
CIRCLIP PLIER FOR INTERNAL RETAINING RING
³ for internal retaining rings acc. to DIN 472, DIN 984
³ jaws bent at 90°
³ gunmetal-finish, ground joint
³ red dip insulated handles
³ ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
³ according to DIN 5256 Form D

Code Number for circlips from ... to Ø mm l/mm l/Inch Pieces Weight/g
T T U V
0383020085100 383-J11 8-25 130 5 1 109
0383020195100 383-J21 19-60 170 7 1 189 08
0383020405100 383-J31 40-100 210 8,5 1 274
0383020855100 383-J41 85-165 310 12,5 1 514

384-A0-A4
CIRCLIP PLIER FOR EXTERNAL RETAINING RING
³ for external retaining rings acc. to DIN 471, DIN 983
³ straight jaws, self-opening due to mounted spiral spring
³ gunmetal-finish, ground joint
³ red dip insulated handles
³ ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
³ according to DIN 5254 Form A

l/mm l/Inch Pieces Weight/g
Code Number for circlips from ... to Ø mm
T T U V
0384010035100 384-A0 3-10 140 5,5 1 114
0384010105100 384-A1 10-25 140 5,5 1 108
0384010195100 384-A2 19-60 180 7 1 183
0384010405100 384-A3 40-100 220 9 1 275
0384010855100 384-A4 85-165 320 13 1 512
