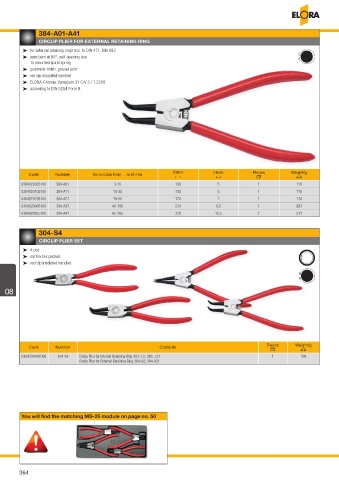

Page 364 - ELORA-Tool_Catalogue_E95

384-A01-A41
CIRCLIP PLIER FOR EXTERNAL RETAINING RING

³ for external retaining rings acc. to DIN 471, DIN 983
³ jaws bent at 90°, self-opening due
to mounted spiral spring
³ gunmetal-finish, ground joint
³ red dip insulated handles
³ ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
³ according to DIN 5254 Form B

l/mm l/Inch Pieces Weight/g
Code Number for circlips from ... to Ø mm
T T U V
0384020035100 384-A01 3-10 130 5 1 110
0384020105100 384-A11 10-25 130 5 1 115
0384020195100 384-A21 19-60 170 7 1 178
0384020405100 384-A31 40-100 210 8,5 1 283
0384020855100 384-A41 85-165 310 12,5 1 511

304-S4
CIRCLIP PLIER SET
³ 4 pcs.
³ carton box packed
³ red dip insulated handles

08

Code Number Contents Pieces Weight/g
U V
0304500401000 304-S4 Circlip Plier for Internal Retaining Ring 383-J 2; 383-J 21 1 799
Circlip Plier for External Retaining Ring 384-A2; 384-A21

You will find the matching MS-25 module on page no. 50

364
