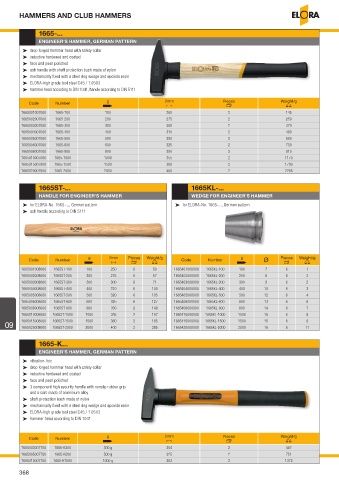

Page 368 - ELORA-Tool_Catalogue_E95

HAMMERS AND CLUB HAMMERS

1665-...
ENGINEER'S HAMMER, GERMAN PATTERN

³ drop forged hammer head with safety collar
³ inductive hardened and coated
³ face and peen polished
³ ash handle with shaft protection bush made of nylon
³ mechanically fixed with a steel ring wedge and epoxide resin
³ ELORA-high grade tool steel C45 / 1.0503
³ hammer head according to DIN 1041, handle according to DIN 5111

Code Number g l/mm Pieces Weight/g
n T U V
1665001007000 1665-100 100 260 2 145
1665002007000 1665-200 200 275 2 250
1665003007000 1665-300 300 300 2 370
1665004007000 1665-400 400 310 2 460
1665005007000 1665-500 500 320 2 590
1665006007000 1665-600 600 325 2 730
1665008007000 1665-800 800 350 2 910
1665010007000 1665-1000 1000 355 2 1170
1665015007000 1665-1500 1500 380 2 1700
1665020007000 1665-2000 2000 400 2 2285

1665ST-... 1665KL-...
HANDLE FOR ENGINEER'S HAMMER WEDGE FOR ENGINEER'S HAMMER
³ for ELORA-No. 1665-..., German pattern ³ for ELORA-No. 1665-..., German pattern
³ ash handle according to DIN 5111

Code Number g l/mm Pieces Weight/g Code Number g Ø Pieces Weight/g
n T U V n U V
1665001008000 1665ST-100 100 250 6 50 1665401000000 1665KL-100 100 7 6 1
1665002008000 1665ST-200 200 275 6 57 1665402000000 1665KL-200 200 8 6 2
1665003008000 1665ST-300 300 300 6 71 1665403000000 1665KL-300 300 9 6 2
1665004008000 1665ST-400 400 310 6 100 1665404000000 1665KL-400 400 10 6 3
1665005008000 1665ST-500 500 320 6 105 1665405000000 1665KL-500 500 12 6 4
1665006008000 1665ST-600 600 325 6 127 1665406000000 1665KL-600 600 13 6 6
1665008008000 1665ST-800 800 350 2 149 1665408000000 1665KL-800 800 14 6 7
1665010008000 1665ST-1000 1000 355 2 157 1665410000000 1665KL-1000 1000 15 6 8
8
09 1665015008000 1665ST-1500 1500 380 2 2 185 1665415000000 1665KL-1500 1500 15 6 6 11
1665KL-2000
2000
285
1665ST-2000
1665420000000
2000
16
1665020008000
400
1665-K...
ENGINEER'S HAMMER, GERMAN PATTERN
³ vibration-free
³ drop forged hammer head with safety collar
³ inductive hardened and coated
³ face and peen polished
³ 3 component high security handle with nonslip rubber grip
and a core made of aluminium alloy
³ shaft protection bush made of nylon
³ mechanically fixed with a steel ring wedge and epoxide resin
³ ELORA-high grade tool steel C45 / 1.0503
³ hammer head according to DIN 1041

Code Number g l/mm Pieces Weight/g
n T U V
1665003007700 1665-K300 300 g 304 2 467
1665005007700 1665-K500 500 g 325 2 751
1665010007700 1665-K1000 1000 g 363 2 1372

368
