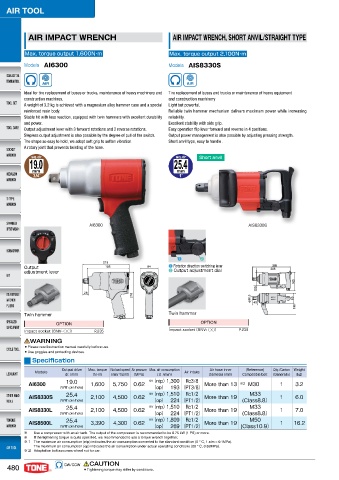

AIR IMPACT WRENCH AIR IMPACT WRENCH, SHORT ANVIL/STRAIGHT TYPE

Max. torque output 1,600N･m Max. torque output 2,100N･m
Models AI6300 Models AIS8330S

Ideal for tire replacement of buses or trucks, maintenance of heavy machinery and Tire replacement of buses and trucks or maintenance of heavy equipment
construction machines. and construction machinery
A weight of 3.2 kg is achieved with a magnesium alloy hammer case and a special Light but powerful.
reinforced resin body. Reliable twin hammer mechanism delivers maximum power while increasing
Stable hit with less reaction, equipped with twin hammers with excellent durability reliability.
and power. Excellent stability with side grip.
Output adjustment lever with 3 forward rotations and 2 reverse rotations. Easy operation flip lever forward and reverse in 4 positions.
Stepless output adjustment is also possible by the degree of pull of the switch. Output power management is also possible by adjusting pressing strength.
The shape so easy to hold, we adopt soft grip to soften vibration. Short anvil type, easy to handle .
A rotary joint that prevents twisting of the hose.
19.0 25.4 Short anvil

mm mm
3/4 1

AI6300 AIS8330S

219
Output 198 84 ❶ Rotation direction switching lever 296
adjustment lever ❷ Output adjustment dial

28
218

Twin hammer Twin hammer
OPTION OPTION
Impact socket（6NV- ○○） P.235 Impact socket（8NV- ○○） P.239
WARNING
● Please read instruction manual carefully before use.
● Use goggles and protecting devices.
Specification
Air hose inner
(Reference)
Models Output drive Max. torque No-load speed Air pressure Max. air consumption Air intake diameter (mm) Compatible bolt Qty./Carton Weight
dr. (mm)
(Generally)
(min [rpm])
(kg)
(MPa)
(N･m)
(ℓ /min)
-1
AI6300 19.0 1,600 5,750 0.62 ※1 （ntp） 1,300 Rc3/8 More than 13 ※2 M30 1 3.2
(With pin hole) （op） 193 （PT3/8）
AIS8330S 25.4 2,100 4,500 0.62 ※1 （ntp） 1,510 Rc1/2 More than 19 M33 1 6.0
(With pin hole) （op） 224 （PT1/2） (Class8.8）
AIS8330L 25.4 2,100 4,500 0.62 ※1 （ntp） 1,510 Rc1/2 More than 19 M33 1 7.0
(With pin hole) （op） 224 （PT1/2） (Class8.8）
AIS8500L 25.4 3,390 4,300 0.62 ※1 （ntp） 1,809 Rc1/2 More than 19 M50 1 16.2
(With pin hole) （op） 269 （PT1/2） (Class10.9）
※ Use a compressor with an air tank. The output of the compressor is recommended to be 0.75 kW (1 PS) or more.
※ If the tightening torque is quite specified, we recommended to use a torque wrench together.
※ 1 The maximum air consumption (ntp) indicates the air consumption converted to the standard condition (0 ° C, 1 atm = 0.1MPa).
The maximum air consumption (op) indicates the air consumption under actual operating conditions (20 ° C, 0.62MPa).
※ 2 Adaptation bolt assumes wheel nut for car.
CAUTION
480 ● Tightening torque may differ by conditions.
