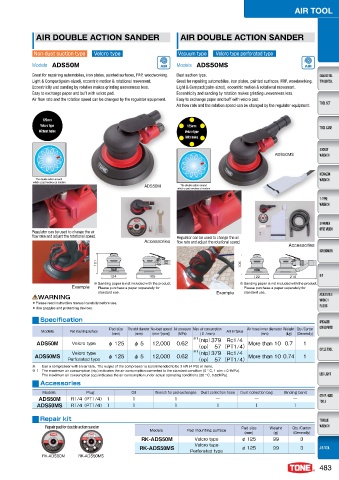

AIR DOUBLE ACTION SANDER AIR DOUBLE ACTION SANDER

Non-dust suction type Velcro type Vacuum type Velcro type perforated type
Models ADS50M Models ADS50MS

Great for repairing automobiles, iron plates, painted surfaces, FRP, woodworking. Dust suction type.
Light & Compact(palm-sized), eccentric motion & rotational movement. Great for repairing automobiles, iron plates, painted surfaces, FRP, woodworking.
Eccentricity and sanding by rotation makes grinding unevenness less. Light & Compact(palm-sized), eccentric motion & rotational movement.
Easy to exchange paper and buff with velcro pad. Eccentricity and sanding by rotation makes grinding unevenness less.
Air flow rate and the rotation speed can be changed by the regulator equipment. Easy to exchange paper and buff with velcro pad.
Air flow rate and the rotation speed can be changed by the regulator equipment.

125mm
Velcro type 125mm
Without holes Velcro type
With holes

ADS50MS

The double action around
which a pad revolves at random
ADS50M The double action around
which a pad revolves at random

Regulator can be used to change the air
flow rate and adjust the rotational speed. Regulator can be used to change the air
Accessories flow rate and adjust the rotational speed.
Accessories

※ Sanding paper is not included with the product. ※ Sanding paper is not included with the product.
Example Please purchase a paper separately for Please purchase a paper separately for
standard use. Example standard use.
WARNING
● Please read instruction manual carefully before use.
● Use goggles and protecting devices.
Specification

Pad size The orbit diameter No-load speed Air pressure Max. air consumption Air hose inner diameter Weight Qty./Carton
Models Pad mounting surface Air intake
(mm) (mm) (min [rpm]) (MPa) (ℓ /min) (mm) (kg) (Generally)
-1
※1 （ntp） 379 Rc1/4
ADS50M Velcro type φ 125 φ5 12,000 0.62 More than 10 0.7 1
（op） 57（PT1/4）
ADS50MS Velcro type φ 125 φ5 12,000 0.62 ※1 （ntp） 379 Rc1/4 More than 10 0.74 1
Perforated type （op） 57（PT1/4）
※ Use a compressor with an air tank. The output of the compressor is recommended to be 3 kW (4 PS) or more.
※ 1 The maximum air consumption (ntp) indicates the air consumption converted to the standard condition (0 ° C, 1 atm = 0.1MPa).
The maximum air consumption (op) indicates the air consumption under actual operating conditions (20 ° C, 0.62MPa).
Accessories
Models Plug Oil Wrench for pad exchanges Dust collection hose Dust collection bag Binding band
ADS50M R1/4（PT1/4） 1 1 1 ― ― ―

ADS50MS R1/4（PT1/4） 1 1 1 1 1 1

Repair kit
Repair pad for double action sander Pad size Weight Qty./Carton
Models Pad mounting surface
(mm) (g) (Generally)
RK-ADS50M Velcro type φ 125 99 3
Velcro type
RK-ADS50MS Perforated type φ 125 99 3
RK-ADS50M RK-ADS50MS

483
