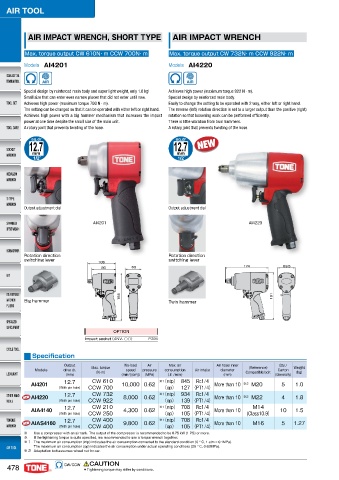

AIR IMPACT WRENCH, SHORT TYPE AIR IMPACT WRENCH

Max. torque output CW 610N･ ｍ CCW 700N･ ｍ Max. torque output CW 732N･ ｍ CCW 922N･ ｍ
Models AI4201 Models AI4220

Special design by reinforced resin body and super light weight, only 1.0 kg! Achieves high power (maximum torque 922 N · m).
Small size that can enter even narrow places that did not enter until now. Special design by reinforced resin body.
Achieves high power (maximum torque 700 N · m). Easily to change the setting to be operated with 2 way, either left or right hand.
The setting can be changed so that it can be operated with either left or right hand. The reverse (left) rotation direction is set to a larger output than the positive (right)
Achieves high power with a big hammer mechanism that increases the impact rotation so that loosening work can be performed efficiently.
power at one time despite the small size of the main unit. There is little vibration from twin hammers.
A rotary joint that prevents twisting of the hose. A rotary joint that prevents twisting of the hose.

12.7 12.7

mm mm
1/2 1/2

Output adjustment dial Output adjustment dial

AI4201 AI4220

Rotation direction Rotation direction
switching lever switching lever

Big hammer Twin hammer

OPTION
Impact socket（4NV- ○○） P.224

Specification
Output No-load Air Max. air Air hose inner Qty./
(Reference)
Models drive dr. Max. torque speed pressure consumption Air intake diameter Compatible bolt Carton Weight
(kg)
(N･m)
(mm) (min [rpm]) (MPa) (ℓ /min) (mm) (Generally)
-1
AI4201 12.7 CW 610 10,000 0.62 ※1 （ntp） 845 Rc1/4 More than 10 ※2 M20 5 1.0
(With pin hole) CCW 700 （op） 127 （PT1/4）
AI4220 12.7 CW 732 8,000 0.62 ※1 （ntp） 934 Rc1/4 More than 10 ※2 M22 4 1.8
(With pin hole) CCW 922 （op） 139 （PT1/4）
AIA4140 12.7 CW 210 4,300 0.62 ※1 （ntp） 708 Rc1/4 More than 10 M14 10 1.5
(With pin hole) CCW 250 （op） 105 （PT1/4） (Class10.9）
AIAS4160 12.7 CW 400 9,800 0.62 ※1 （ntp） 708 Rc1/4 More than 10 M16 5 1.27
(With pin hole) CCW 400 （op） 105 （PT1/4）
※ Use a compressor with an air tank. The output of the compressor is recommended to be 0.75 kW (1 PS) or more.
※ If the tightening torque is quite specified, we recommended to use a torque wrench together.
※ 1 The maximum air consumption (ntp) indicates the air consumption converted to the standard condition (0 ° C, 1 atm = 0.1MPa).
The maximum air consumption (op) indicates the air consumption under actual operating conditions (20 ° C, 0.62MPa).
※ 2 Adaptation bolt assumes wheel nut for car.

CAUTION
478 ● Tightening torque may differ by conditions.
