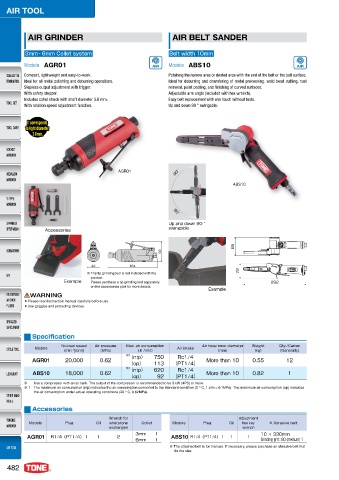

AIR GRINDER AIR BELT SANDER

3mm・6mm Collet system Belt width 10mm
Models AGR01 Models ABS10

Compact, lightweight and easy-to-work. Polishing the narrow area or dented area with the end of the belt or the belt surface.
Ideal for all metal polishing and deburring operations. Ideal for deburring and chamfering of metal processing, weld bead cutting, rust
Stepless output adjustment with trigger. removal, paint peeling, and finishing of curved surfaces.
With safety stopper. Adjustable arm angle (included with hex wrench).
Includes collet chuck with shaft diameter 3.6 mm. Easy belt replacement with one touch without tools.
With rotation speed adjustment function. Up and down 90 ° swingable.

It corresponds
It corresponds
to light diameter
to light diameter
3.6mm.
3.6mm.

AGR01

ABS10

Up and down 90 °
Accessories swingable

※ The tip grinding tool is not included with the
product.
Example Please purchase a tip grinding tool separately
on the accessories part for more details.
Example
WARNING
● Please read instruction manual carefully before use.
● Use goggles and protecting devices.

Specification

Models No-load speed Air pressure Max. air consumption Air intake Air hose inner diameter Weight Qty./Carton
(ℓ /min)
(MPa)
(mm)
(Generally)
(kg)
(min [rpm])
-1
※1 （ntp） 750 Rc1/4
AGR01 20,000 0.62 （op） 113 （PT1/4） More than 10 0.55 12
※1 （ntp） 620 Rc1/4
ABS10 18,000 0.62 （op） 92 （PT1/4） More than 10 0.82 1
※ Use a compressor with an air tank. The output of the compressor is recommended to be 3 kW (4PS) or more.
※ 1 The maximum air consumption (ntp) indicates the air consumption converted to the standard condition (0 ° C, 1 atm = 0.1MPa). The maximum air consumption (op) indicates
the air consumption under actual operating conditions (20 ° C, 0.62MPa).
Accessories
Wrench for Adjustment
Models Plug Oil whetstone Collet Models Plug Oil hex key ※ Abrasive belt
exchanges wrench
AGR01 R1/4（PT1/4） 1 1 2 3mm 1 ABS10 R1/4（PT1/4） 1 1 1 10 × 330mm

6mm 1 Grinding grit : 80 (medium) 1
※ The attached belt is for trial use. If necessary, please purchase an abrasive belt that
fits the size.

482
