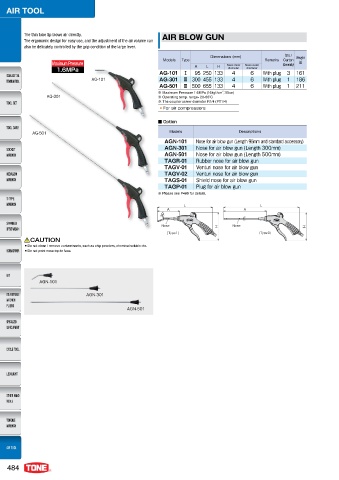

The thin tube tip blows air directly. AIR BLOW GUN
The ergonomic design for easy use, and the adjustment of the air volume can
also be delicately controlled by the grip condition of the large lever.
Dimensions (mm) Qty./ Weight
Models Type Remarks Carton
Maximum Pressure A L H Nose inner Nose outer (Generally) (g)
1.6MPa AG-101 Ⅰ 95 250 133 diameter diameter With plug 3 161
4
6
AG-101 AG-301 Ⅱ 300 455 133 4 6 With plug 1 186
AG-501 Ⅱ 500 655 133 4 6 With plug 1 211
2
※ Maximum Pressure 1.6MPa (16kgf/cm ,16bar)
AG-301 ※ Operating temp. range- 20-80˚C
※ The coupler screw diameter R1/4 (PT1/4)
● For air compressors
■ Option
AG-501 Models Descriptions
AGN-101 Nose for air blow gun (Length 95mm and standard accessory)
AGN-301 Nose for air blow gun (Length 300mm)
AGN-501 Nose for air blow gun (Length 500mm)
TAGR-01 Rubber nose for air blow gun
TAGV-01 Venturi nose for air blow gun
TAGV-02 Venturi nose for air blow gun
TAGS-01 Shield nose for air blow gun
TAGP-01 Plug for air blow gun
※ Please see P485 for details.
L L
A A

/PTF H /PTF H
<5ZQFᶗ> <5ZQFᶘ>
CAUTION
● Do not clean / remove contaminants, such as chip powders, chemical soluble etc.
● Do not point nose-top to face.

AGN-101

AGN-301

AGN-501
