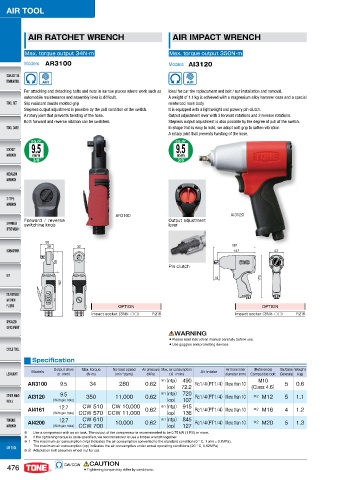

AIR RATCHET WRENCH AIR IMPACT WRENCH

Max. torque output 34N･m Max. torque output 350N･m
Models AR3100 Models AI3120

For attaching and detaching bolts and nuts in narrow places where work such as Ideal for car tire replacement and bolt / nut installation and removal.
automobile maintenance and assembly lines is difficult. A weight of 1.1 kg is achieved with a magnesium alloy hammer case and a special
Slip resistant double molded grip. reinforced resin body.
Stepless output adjustment is possible by the pull condition of the switch. It is equipped with a lightweight and powery pin clutch.
A rotary joint that prevents twisting of the hose. Output adjustment lever with 3 forward rotations and 2 reverse rotations.
Both forward and reverse rotation can be switched. Stepless output adjustment is also possible by the degree of pull of the switch.
In shape that is easy to hold, we adopt soft grip to soften vibration.
A rotary joint that prevents twisting of the hose.
9.5 9.5
mm mm
3/8 3/8

AR3100 AI3120
Forward / reverse Output adjustment
switching knob lever

35
28 32 161
147 57
59
Pin clutch
19 170
182

OPTION OPTION
Impact socket（3NV- ○○） P.218 Impact socket（3NV- ○○） P.218

WARNING
● Please read instruction manual carefully before use.
● Use goggles and protecting devices.

Specification
Output drive Max. torque No-load speed Air pressure Max. air consumption Air hose inner (Reference) Qty./Carton Weight
Models Air intake
dr. (mm) (N･m) (min [rpm]) (MPa) (ℓ /min) diameter (mm) Compatible bolt (Generally) (kg)
-1
※1 （ntp） 490 M10
AR3100 9.5 34 280 0.62 （op） 72.2 Rc1/4（PT1/4）More than 10 (Class 4.6） 5 0.6
AI3120 9.5 350 11,000 0.62 ※1 （ntp） 720 Rc1/4（PT1/4）More than 10 ※2 M12 5 1.1
(With pin hole) （op） 107
CW 10,000
CW 510
12.7
AI4161 (With pin hole) CCW 570 CCW 11,000 0.62 ※1 （ntp） 915 Rc1/4（PT1/4）More than 10 ※2 M16 4 1.2
（op） 136

CW 610
12.7
AI4200 (With pin hole) CCW 700 10,000 0.62 ※1 （ntp） 845 Rc1/4（PT1/4）More than 10 ※2 M20 5 1.3

（op） 127
※ Use a compressor with an air tank. The output of the compressor is recommended to be 0.75 kW (1 PS) or more.
※ If the tightening torque is quite specified, we recommended to use a torque wrench together.
※ 1 The maximum air consumption (ntp) indicates the air consumption converted to the standard condition (0 ° C, 1 atm = 0.1MPa).
The maximum air consumption (op) indicates the air consumption under actual operating conditions (20 ° C, 0.62MPa).
※ 2 Adaptation bolt assumes wheel nut for car.
CAUTION
476 ● Tightening torque may differ by conditions.
