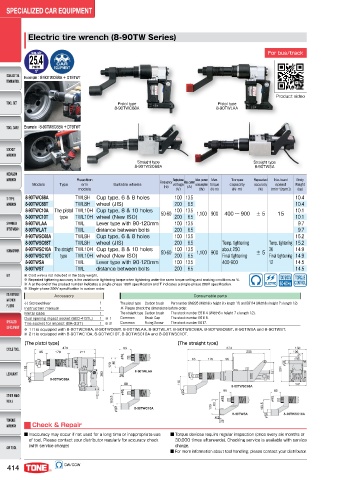

Electric tire wrench (8-90TW Series)

25.4 For bus/track

mm
1
Example：8-90TWC68A ＋ DT9TWT

Product video
Pistol type Pistol type
8-90TWC68A 8-90TWLAA

Example：8-90TWSC68A ＋ DT9TWT

Straight type Straight type
8-90TWSC68A 8-90TWSA

Reaction Single-phase Max. power Max. Torque Repeated No-load Body
Models Type arm Suitable wheels Frequency voltage Max. current consumption torque capacity accuracy speed Weight
(A)
(Hz)
models (V) (W) (N･m) (N･m) (%) (min [rpm]) (kg)
-1
8-90TWC68A TWL8H Cup type, 6 & 8 holes 100 13.5 10.4
8-90TWC68T TWL8H wheel (JIS) 200 6.5 10.4
8-90TWC10A The pistol TWL10H Cup type, 8 & 10 holes 50-60 100 13.5 1,100 900 400 ～ 900 ± 5 15 10.1
8-90TWC10T type TWL10H wheel (New ISO) 200 6.5 10.1
8-90TWLAA TWL Lever type with 90-120mm 100 13.5 9.7
8-90TWLAT TWL distance between bolts 200 6.5 9.7
8-90TWSC68A TWL8H Cup type, 6 & 8 holes 100 13.5 15.2
8-90TWSC68T TWL8H wheel (JIS) 200 6.5 Temp. tightening Temp. tightening 15.2
8-90TWSC10A The straight TWL10H Cup type, 8 & 10 holes 50-60 100 13.5 1,100 900 about 250 ± 5 36 14.9
8-90TWSC10T type TWL10H wheel (New ISO) 200 6.5 Final tightening Final tightening 14.9
8-90TWSA TWL Lever type with 90-120mm 100 13.5 400-900 12 14.5
8-90TWST TWL distance between bolts 200 6.5 14.5
※ Cord wire is not included in the body weight.
※ Repeated tightening accuracy is the variation in tightening torque when tightening under the same torque setting and working conditions as %.
※ A at the end of the product number indicates a single-phase 100V specification and T indicates a single-phase 200V specification.
※ Single-phase 200V specification is custom order.
Accessory Consumable parts
(-) Screwdriver 1 The pistol type Carbon brush Part number GM295 (Width6 x height 9 x length 11) and E6114 (Width6 x height 7 x length 12).
Instruction manual 1 ※ Please check the dimensions before order.
Metal case 1 The straight type Carbon brush The stock number E6114 (Width6 x height 7 x length 12).
Dual opening impact socket (8ED-4121L) 1 ※1 Common Brush Cap The stock number E6115.
Tire socket for impact (8A-33T) 1 ※2 Common Fixing Screw The stock number E617.
※ 1 It is equipped with 8-90TWC68A, 8-90TWC68T, 8-90TWLAA, 8-90TWLAT, 8-90TWSC68A, 8-90TWSC68T, 8-90TWSA and 8-90TWST.
※ 2 It is equipped with 8-90TWC10A, 8-90TWC10T, 8-90TWSC10A and 8-90TWSC10T.
【The pistol type】 【The straight type】

Check & Repair
■ Inaccuracy may occur if not used for a long time or inappropriate use ■ Torque devices require regular inspection (once every six months or
of tool. Please contact your distributor regularly for accuracy check 30,000 times afterwards). Checking service is available with service
(with service charge) charge.
■ For more information about tool handling, please contact your distributor.
