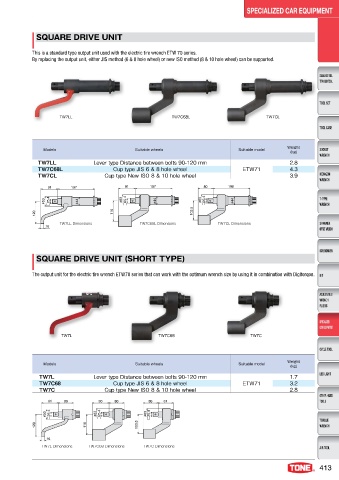

SQUARE DRIVE UNIT

This is a standard type output unit used with the electric tire wrench ETW 70 series.
By replacing the output unit, either JIS method (6 & 8 hole wheel) or new ISO method (8 & 10 hole wheel) can be supported.

TW7LL TW7C68L TW7CL

Models Suitable wheels Suitable model Weight
(kg)
TW7LL Lever type Distance between bolts 90-120 mm 2.8
TW7C68L Cup type JIS 6 & 8 hole wheel ETW71 4.3
TW7CL Cup type New ISO 8 & 10 hole wheel 3.9

91 197 91 197 80 198

П 53 ˘25.4 П 44 П 63 ˘25.4 П 44 П 63 ˘25.4 П 44
120 110 103.5
TW7LL Dimensions TW7C68L Dimensions TW7CL Dimensions
16

SQUARE DRIVE UNIT (SHORT TYPE)

The output unit for the electric tire wrench ETW70 series that can work with the optimum wrench size by using it in combination with Digitorqon.

TW7L TW7C68 TW7C

Weight
Models Suitable wheels Suitable model
(kg)
TW7L Lever type Distance between bolts 90-120 mm 1.7
TW7C68 Cup type JIS 6 & 8 hole wheel ETW71 3.2
TW7C Cup type New ISO 8 & 10 hole wheel 2.8

91 80 90 80 80 81
П 53 ˘25.4 П 63 ˘25.4 П 63 ˘25.4
120 110 103.5

16
TW7L Dimensions TW7C68 Dimensions TW7C Dimensions

413
