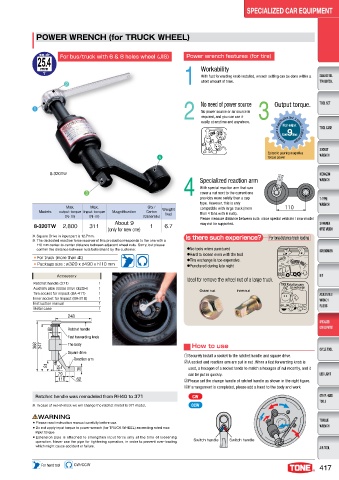

POWER WRENCH (for TRUCK WHEEL)

25.4 For bus/truck with 6 & 8 holes wheel (JIS) 1PXFS XSFODI GFBUVSFT GPS UJSF
mm Workability
1 1 With fast forwarding knob installed, wrench setting can be done within a
❷ short amount of time.

❶ 2 No need of power source 3 Output torque.
No power source or air source is
required, and you can use it
easily at anytime and anywhere.
High output
About times

Input torque x magnification (est. 9 times) = Output torque
Epicyclic gearing magnifies
❹ torque power

8-320TW
4 Specialized reaction arm

❸ With special reaction arm that can
cover a nut next to the current one
provides more safety than a cup
type. However, this is only
Max. Max. Qty./ compatible with large truck (more
Models output torque input torque Magnification Carton Weight than 4 tons with 6 nuts).
（kg）
(N･m) (N･m) (Generally) Please measure distance between nuts since special vehicles / new model
About 9
8-320TW 2,800 311 1 6.7 may not be supported.
(only for new one)
※ Square Drive in input part is 12.7mm. *T UIFSF TVDI FYQFSJFODF 'PS MPOH EJTUBODF USVDL MPBEJOH
※ The dedicated reaction force receiver of this product corresponds to the one with a
110 mm center-to-center distance between adjacent wheel nuts. Sorry, but please
confirm the distance between nuts beforehand by the customer. ˔No tools when punctured
˔Hard to loosen even with the tool
● For truck (more than 4t) ˔Tire exchange is too expensive.
● Package size : w320 x d490 x h110 mm Blown out
˔Punctured during late night
Accessory *EFBM GPS SFNPWF UIF XIFFM OVU PG B MBSHF USVDL
Ratchet handle (371) 1 TIRE Rotation easy
TIRE Rotation easy
to exchange
Auxiliary pipe (loose only) (320H) 1 0VUFS OVU *OOFS OVU to exchange
Tire socket for impact (8A-41T) 1
Inner socket for impact (8A-21B) 1
Instruction manual 1
Metal case 1

Ratchet handle
Fast forwarding knob
The body )PX UP VTF
Square drive
ᶃSecurely install a socket to the ratchet handle and square drive.
Reaction arm
ᶄA socket and reaction arm are put in nut .When a fast forwarding knob is
used, a hexagon of a socket tends to match a hexagon of nut recently, and it
can be put in quickly.
ᶅPlease set the change handle of ratchet handle as shown in the right figure.
ᶆIf arrangement is completed, please add a hand to the body and work.
Ratchet handle was remodeled from RH40 to 371 CW
※ In case of out-of-stock we will change the ratchet model to 371 model. CCW

WARNING
● Please read instruction manual carefully before use.
● Do not apply input torque to power wrench (for TRUCK WHEEL) exceeding rated max
input torque.
● Extension pipe is attached to strengthen input force only at the time of loosening
operation. Never use the pipe for tightening operation, in order to prevent over-loading 4XJUDI IBOEMF 4XJUDI IBOEMF
which might cause accident or failure.

'PS IBOE UPPM
