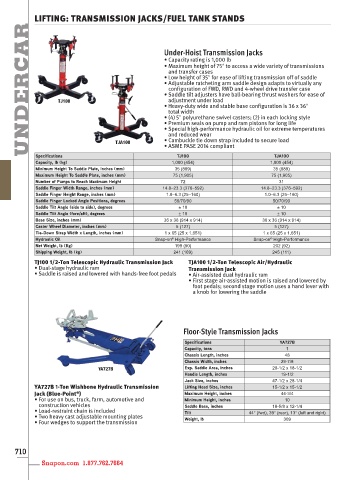

Page 712 - 实耐宝完整US版1500

LIFTING: TRANSMISSION JACKS/FUEL TANK STANDS
UNDERCAR

Under-Hoist Transmission Jacks
• Capacity rating is 1,000 lb
• Maximum height of 75ʺ to access a wide variety of transmissions
and transfer cases
• Low height of 35ʺ for ease of lifting transmission off of saddle
• Adjustable ratcheting arm saddle design adapts to virtually any
configuration of FWD, RWD and 4-wheel drive transfer case
• Saddle tilt adjusters have ball-bearing thrust washers for ease of
TJ100 adjustment under load
• Heavy-duty wide and stable base configuration is 36 x 36ʺ
total width
• (4) 5ʺ polyurethane swivel casters; (2) in each locking style
• Premium seals on pump and ram pistons for long life
• Special high-performance hydraulic oil for extreme temperatures
and reduced wear
• Cambuckle tie down strap included to secure load
TJA100
• ASME PASE 2014 compliant
Specifications TJ100 TJA100
Capacity, lb (kg) 1,000 (454) 1,000 (454)
Minimum Height To Saddle Plate, inches (mm) 35 (889) 35 (889)
Maximum Height To Saddle Plate, inches (mm) 75 (1,905) 75 (1,905)
Number of Pumps to Reach Maximum Height 72 31
Saddle Finger Width Range, inches (mm) 14.8–23.3 (376–592) 14.8–23.3 (376–592)
Saddle Finger Height Range, inches (mm) 1.0–6.3 (25–160) 1.0–6.3 (25–160)
Saddle Finger Locked Angle Positions, degrees 50/70/90 50/70/90
Saddle Tilt Angle (side to side), degrees ± 10 ± 10
Saddle Tilt Angle (fore/aft), degrees ± 10 ± 10
Base Size, inches (mm) 36 x 36 (914 x 914) 36 x 36 (914 x 914)
Caster Wheel Diameter, inches (mm) 5 (127) 5 (127)
Tie-Down Strap Width x Length, inches (mm) 1 x 65 (25 x 1,651) 1 x 65 (25 x 1,651)
®
®
Hydraulic Oil Snap-on High-Performance Snap-on High-Performance
Net Weight, lb (Kg) 198 (90) 202 (92)
Shipping Weight, lb (kg) 241 (109) 245 (111)
TJ100 1/2-Ton Telescopic Hydraulic Transmission Jack TJA100 1/2-Ton Telescopic Air/Hydraulic
• Dual-stage hydraulic ram Transmission Jack
• Saddle is raised and lowered with hands-free foot pedals • Air-assisted dual hydraulic ram
• First stage air-assisted motion is raised and lowered by
foot pedals; second stage motion uses a hand lever with
a knob for lowering the saddle

Floor-Style Transmission Jacks

Specifications YA727B
Capacity, tons 1
Chassis Length, inches 48
Chassis Width, inches 29-7/8
YA727B Exp. Saddle Area, inches 20-1/2 x 18-1/2
Handle Length, inches 19-1/2
Jack Size, inches 47-1/2 x 28-1/4
YA727B 1-Ton Wishbone Hydraulic Transmission Lifting Head Size, inches 15-1/2 x 15-1/2
Jack (Blue-Point ) Maximum Height, inches 44-3/4
®
• For use on bus, truck, farm, automotive and Minimum Height, inches 10
construction vehicles Saddle Base, inches 18-5/8 x 12-1/4
• Load-restraint chain is included Tilt 44° (fwd), 39° (rear), 13° (left and right)
• Two heavy cast adjustable mounting plates Weight, lb 309
• Four wedges to support the transmission

710

Snapon.com 1.877.762.7664
