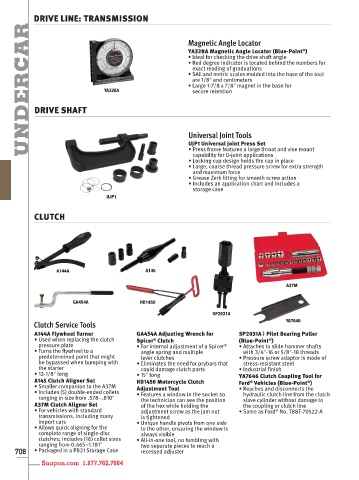

DRIVE LINE: TRANSMISSION
UNDERCAR

Magnetic Angle Locator
YA328A Magnetic Angle Locator (Blue-Point )
®
• Ideal for checking the drive shaft angle
• Red degree indicator is located behind the numbers for
exact reading of graduations
• SAE and metric scales molded into the base of the tool
are 1/8ʺ and centimeters
• Large 1-7/8 x 7/8ʺ magnet in the base for
YA328A secure retention

DRIVE SHAFT

Universal Joint Tools
UJP1 Universal Joint Press Set
• Press frame features a large throat and vise mount
capability for U-joint applications
• Locking cup design holds the cup in place
• Large, coarse thread pressure screw for extra strength
and maximum force
• Grease Zerk fitting for smooth screw action
• Includes an application chart and includes a
storage case
UJP1

CLUTCH

A144A A145
A37M

GA454A HD1450
SP2031A
YA7646
Clutch Service Tools
A144A Flywheel Turner GA454A Adjusting Wrench for SP2031A ‡ Pilot Bearing Puller
• Used when replacing the clutch Spicer Clutch (Blue-Point )
®
®
pressure plate • For internal adjustment of a Spicer • Attaches to slide hammer shafts
®
• Turns the flywheel to a angle spring and multiple with 3/4ʺ-16 or 5/8ʺ-18 threads
predetermined point that might lever clutches • Pressure screw adaptor is made of
be bypassed when bumping with • Eliminates the need for prybars that stress-resistant steel
the starter could damage clutch parts • Industrial finish
• 12-1/8ʺ long • 15ʺ long YA7646 Clutch Coupling Tool for
A145 Clutch Aligner Set HD1450 Motorcycle Clutch Ford Vehicles (Blue-Point )
®
®
• Smaller companion to the A37M Adjustment Tool • Reaches and disconnects the
• Includes (5) double-ended collets • Features a window in the socket so hydraulic clutch line from the clutch
ranging in size from .578–.810ʺ the technician can see the position slave cylinder without damage to
A37M Clutch Aligner Set of the hex while holding the the coupling or clutch line
• For vehicles with standard adjustment screw as the jam nut • Same as Ford No. T88T-70522-A
®
transmissions, including many is tightened
import cars • Unique handle pivots from one side
• Allows quick aligning for the to the other, ensuring the window is
complete range of single-disc always visible
clutches; includes (16) collet sizes • All-in-one tool, no fumbling with
ranging from 0.465–1.181ʺ two separate pieces to reach a
708 • Packaged in a PB21 Storage Case recessed adjuster
