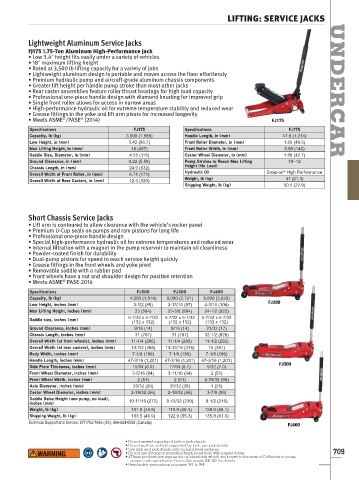

LIFTING: SERVICE JACKS

Lightweight Aluminum Service Jacks
FJ175 1.75-Ton Aluminum High-Performance Jack
• Low 3.4ʺ height fits easily under a variety of vehicles
• 18ʺ maximum lifting height
• Rated at 3,500 lb lifting capacity for a variety of jobs
• Lightweight aluminum design is portable and moves across the floor effortlessly
• Premium hydraulic pump and aircraft-grade aluminum chassis components
• Greater lift height per handle pump stroke than most other jacks
• Rear caster assemblies feature roller thrust bearings for high load capacity UNDERCAR
• Professional one-piece handle design with diamond knurling for improved grip
• Single front roller allows for access in narrow areas
• High-performance hydraulic oil for extreme temperature stability and reduced wear
• Grease fittings in the yoke and lift arm pivots for increased longevity
®
®
• Meets ASME /PASE (2014) FJ175
Specifications FJ175 Specifications FJ175
Capacity, lb (kg) 3,500 (1,588) Handle Length, in (mm) 47.8 (1,214)
Low Height, in (mm) 3.42 (86.7) Front Roller Diameter, in (mm) 1.95 (49.5)
Max Lifting Height, in (mm) 18 (457) Front Roller Width, in (mm) 5.50 (140)
Saddle Size, Diameter, in (mm) 4.55 (116) Caster Wheel Diameter, in (mm) 1.68 (42.7)
Ground Clearance, in (mm) 0.22 (5.59) Pump Strokes to Reach Max Lifting 10–12
Chassis Length, in (mm) 24.9 (632) Height (No Load)
Hydraulic Oil Snap-on High Performance
®
Overall Width at Front Roller, in (mm) 6.74 (171)
Overall Width at Rear Casters, in (mm) 12.6 (320) Weight, lb (kg) 47 (21.3)
Shipping Weight, lb (kg) 50.5 (22.9)

Short Chassis Service Jacks
• Lift arm is contoured to allow clearance with the vehicle’s rocker panel
• Premium U-Cup seals on pumps and ram pistons for long life
• Professional one-piece handle design
• Special high-performance hydraulic oil for extreme temperatures and reduced wear
• Internal filtration with a magnet in the pump reservoir to maintain oil cleanliness
• Powder-coated finish for durability
• Dual-pump pistons for speed to reach service height quickly
• Grease fittings in the front wheels and yoke pivot
• Removable saddle with a rubber pad
• Front wheels have a nut and shoulder design for positive retention
• Meets ASME PASE-2014
®
Specifications FJ200 FJ300 FJ400
Capacity, lb (kg) 4,000 (1,814) 6,000 (2,721) 8,000 (3,629)
Low Height, inches (mm) 3-1/2 (89) 3-13/16 (97) 4-3/16 (106) FJ200
Max Lifting Height, inches (mm) 23 (584) 23-3/8 (594) 24-1/2 (622)
5-7/32 x 5-7/32 5-7/32 x 5-7/32 5-7/32 x 5-7/32
Saddle size, inches (mm) (132 x 132) (132 x 132) (132 x 132)
Ground Clearance, inches (mm) 9/16 (14) 9/16 (14) 21/32 (17)
Chassis Length, inches (mm) 31 (787) 31 (787) 32-1/2 (826)
Overall Width (at front wheels), inches (mm) 11-1/4 (286) 11-1/4 (286) 11-1/2 (292)
Overall Width (at rear casters), inches (mm) 14-1/2 (368) 14-13/16 (376) 15 (381)
Body Width, inches (mm) 7-1/8 (180) 7-1/8 (180) 7-1/8 (180)
Handle Length, inches (mm) 47-3/16 (1,201) 47-3/16 (1,201) 47-3/16 (1,201)
Side Plate Thickness, inches (mm) 15/64 (6.0) 17/64 (6.7) 9/32 (7.0) FJ300
Front Wheel Diameter, inches (mm) 3-5/16 (84) 3-11/16 (94) 2 (51)
Front Wheel Width, inches (mm) 2 (51) 2 (51) 2-19/32 (66)
Axle Diameter, inches (mm) 25/32 (20) 25/32 (20) 1 (25)
Caster Wheel Diameter, inches (mm) 2-19/32 (66) 2-19/32 (66) 3-7/8 (99)
Saddle Raise Height (one pump, no load),
inches (mm) 10-11/16 (272) 9-13/32 (239) 8-1/2 (216)
Weight, lb (kg) 101.0 (45.8) 110.8 (50.3) 128.0 (58.1)
Shipping Weight, lb (kg) 103.5 (46.9) 122.0 (55.3) 135.8 (61.6)
Technical Support and Service: 877-762-7664 (US); 866-824-0524 (Canada)
FJ400

• Do not exceed capacity of jack or jack stands
• Do not work on vehicle supported by jack, use jack stands
• Use jack and jack stands only on hard level surfaces
• Do not use chrome or industrial finish hand tools with impact driver 709
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
