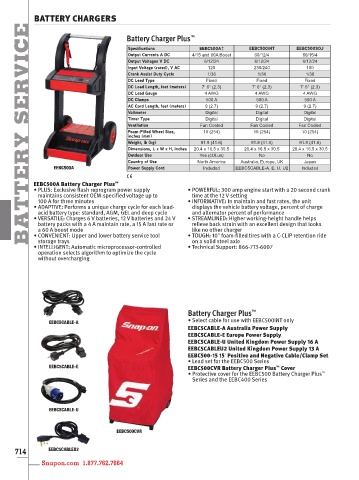

SERVICE BATTERY CHARGERS Battery Charger Plus ™ 4/15 and 60A Boost EEBC500INT EEBC500SOJ

EEBC500A ‡
Specifications
60/15/4
60/12/4
Output Currents A DC
6/12/24
6/12/24
6/12/24
Output Voltages V DC
100
230/240
120
Input Voltage (rated), V AC
1/36
1/36
1/36
Crank Assist Duty Cycle
Fixed
Fixed
Fixed
DC Lead Type
7ʹ 6ʺ (2.3)
7ʹ 6ʺ (2.3)
7ʹ 6ʺ (2.3)
DC Lead Length, feet (meters)
4 AWG
4 AWG
4 AWG
DC Lead Gauge
500 A
500 A
500 A
DC Clamps
9 (2.7)
9 (2.7)
9 (2.7)
AC Cord Length, feet (meters)
Digital
Digital
Digital
Voltmeter
Digital
Digital
Digital
Timer Type
Ventilation Fan Cooled Fan Cooled Fan Cooled
Foam-Filled Wheel Size, 10 (254) 10 (254) 10 (254)
BATTERY
inches (mm)
Weight, lb (kg) 91.8 (41.6) 91.8 (41.6) 91.8 (41.6)
Dimensions, L x W x H, inches 20.4 x 16.5 x 30.5 20.4 x 16.5 x 30.5 20.4 x 16.5 x 30.5
Outdoor Use Yes (cULus) No No
Country of Use North America Australia, Europe, UK Japan
EEBC500A Power Supply Cord Included EEBC5CABLE-A, E, U, U2 Included
EEBC500A Battery Charger Plus ™
• PLUS: Exclusive flash reprogram power supply • POWERFUL: 300 amp engine start with a 20 second crank
maintains consistent OEM-specified voltage up to time at the 12 V setting
100 A for three minutes • INFORMATIVE: In maintain and fast rates, the unit
• ADAPTIVE: Performs a unique charge cycle for each lead- displays the vehicle battery voltage, percent of charge
acid battery type: standard, AGM, GEL and deep cycle and alternator percent of performance
• VERSATILE: Charges 6 V batteries, 12 V batteries and 24 V • STREAMLINED: Higher working-height handle helps
battery packs with a 4 A maintain rate, a 15 A fast rate or relieve back strain with an excellent design that looks
a 60 A boost mode like no other charger
• CONVENIENT: Upper and lower battery service tool • TOUGH: 10ʺ foam-filled tires with a C-CLIP retention ride
storage trays on a solid steel axle
• INTELLIGENT: Automatic microprocessor-controlled • Technical Support: 866-713-6007
operation selects algorithm to optimize the cycle
without overcharging
Battery Charger Plus ™
• Select cable for use with EEBC500INT only
EEBC5CABLE-A
EEBC5CABLE-A Australia Power Supply
EEBC5CABLE-E Europe Power Supply
EEBC5CABLE-U United Kingdom Power Supply 16 A
EEBC5CABLEU2 United Kingdom Power Supply 13 A
EEBC500-15 15ʹ Positive and Negative Cable/Clamp Set
• Lead set for the EEBC500 Series
EEBC5CABLE-E EEBC500CVR Battery Charger Plus Cover
™
• Protective cover for the EEBC500 Battery Charger Plus
™
Series and the EEBC400 Series
EEBC5CABLE-U
EEBC500CVR
714 EEBC5CABLEU2
Snapon.com 1.877.762.7664
