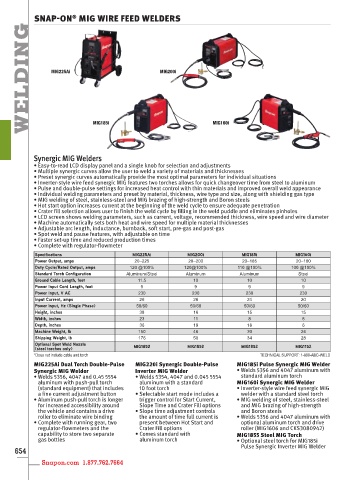

SNAP-ON MIG WIRE FEED WELDERS
®
WELDING MIG225Ai MIG200i

MIG185i

Synergic MIG Welders MIG160i
• Easy-to-read LCD display panel and a single knob for selection and adjustments
• Multiple synergic curves allow the user to weld a variety of materials and thicknesses
• Preset synergic curves automatically provide the most optimal parameters for individual situations
• Inverter-style wire feed synergic MIG features two torches allows for quick changeover time from steel to aluminum
• Pulse and double-pulse settings for increased heat control with thin materials and improved overall weld appearance
• Individual welding parameters and preset by material, thickness, wire type and size, along with shielding gas type
• MIG welding of steel, stainless-steel and MIG brazing of high-strength and Boron steels
• Hot start option increases current at the beginning of the weld cycle to ensure adequate penetration
• Crater fill selection allows user to finish the weld cycle by filling in the weld puddle and eliminates pinholes
• LCD screen shows welding parameters, such as current, voltage, recommended thickness, wire speed and wire diameter
• Machine automatically sets both heat and wire speed for multiple material thicknesses
• Adjustable arc length, inductance, burnback, soft start, pre-gas and post-gas
• Spot weld and pause features, with adjustable on time
• Faster set-up time and reduced production times
• Complete with regulator-flowmeter
Specifications MIG225Ai MIG200i MIG185i MIG160i
Power Output, amps 20–225 20–200 20–185 20–160
Duty Cycle/Rated Output, amps 120 @100% 120@100% 110 @100% 100 @100%
Standard Torch Configuration Aluminum/Steel Aluminum Aluminum Steel
Ground Cable Length, feet 11.5 10 10 10
Power Input Cord Length, feet 9 9 9 9
Power Input, V AC 230 230 230 230
Input Current, amps 26 26 24 20
Power input, Hz (Single Phase) 50/60 50/60 50/60 50/60
Height, inches 38 16 15 15
Width, inches 23 11 8 8
Depth, inches 36 19 18 6
Machine Weight, lb 150 46 30 24
Shipping Weight, lb 176 50 34 28
Optional Spot Weld Nozzle MIG1852 MIG1852 MIG1852 MIG1152
(steel torches only)
*Does not include cable and torch TECHNICAL SUPPORT: 1-800-ABC-WELD
MIG225Ai Dual Torch Double-Pulse MIG220i Synergic Double-Pulse MIG185i Pulse Synergic MIG Welder
Synergic MIG Welder Inverter MIG Welder • Welds 5356 and 4047 aluminum with
• Welds 5356, 4047 and 0.45 5554 • Welds 5354, 4047 and 0.045 5554 standard aluminum torch
aluminum with push-pull torch aluminum with a standard MIG160i Synergic MIG Welder
(standard equipment) that includes 10 foot torch • Inverter-style wire feed synergic MIG
a fine current adjustment button • Selectable start mode includes a welder with a standard steel torch
• Aluminum push-pull torch is longer trigger control for Start Current, • MIG welding of steel, stainless-steel
for increased accessibility around Slope Time and Crater Fill options and MIG brazing of high-strength
the vehicle and contains a drive • Slope time adjustment controls and Boron steels
roller to eliminate wire binding the amount of time full current is • Welds 5356 and 4047 aluminum with
• Complete with running gear, two present between Hot Start and optional aluminum torch and drive
regulator-flowmeters and the Crater Fill options roller (MIG1606 and CKS3080942)
capability to store two separate • Comes standard with MIG1855 Steel MIG Torch
gas bottles aluminum torch • Optional steel torch for MIG185i
Pulse Synergic Inverter MIG Welder
