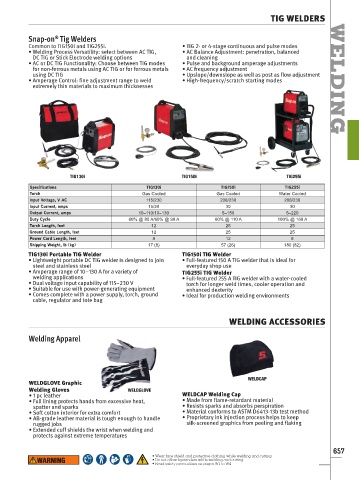

Page 659 - 实耐宝完整US版1500

TIG WELDERS

®
Snap-on Tig Welders
Common to TIG150i and TIG255i. • TIG 2- or 4-stage continuous and pulse modes
• Welding Process Versatility: select between AC TIG, • AC Balance Adjustment: penetration, balanced
DC TIG or Stick Electrode welding options and cleaning
• AC or DC TIG Functionality: Choose between TIG modes • Pulse and background amperage adjustments
for non-ferrous metals using AC TIG or for ferrous metals • AC frequency adjustment
using DC TIG • Upslope/downslope as well as post as flow adjustment
• Amperage Control: fine adjustment range to weld • High-frequency/scratch starting modes WELDING
extremely thin materials to maximum thicknesses

TIG130i TIG150i TIG255i
Specifications TIG130i TIG150i TIG255i
Torch Gas Cooled Gas Cooled Water Cooled
Input Voltage, V AC 115/230 208/230 208/230
Input Current, amps 15/20 30 30
Output Current, amps 10–110/10–130 5–150 5–220
Duty Cycle 60% @ 80 A/60% @ 90 A 60% @ 110 A 100% @ 160 A
Torch Length, feet 12 25 25
Ground Cable Length, feet 12 25 25
Power Cord Length, feet 8 12 8
Shipping Weight, lb (kg) 17 (8) 57 (26) 180 (82)
TIG130i Portable TIG Welder TIG150i TIG Welder
• Lightweight portable DC TIG welder is designed to join • Full-featured 150 A TIG welder that is ideal for
steel and stainless steel everyday shop use
• Amperage range of 10–130 A for a variety of TIG255i TIG Welder
welding applications • Full-featured 255 A TIG welder with a water-cooled
• Dual voltage input capability of 115–230 V torch for longer weld times, cooler operation and
• Suitable for use with power-generating equipment enhanced dexterity
• Comes complete with a power supply, torch, ground • Ideal for production welding environments
cable, regulator and tote bag

WELDING ACCESSORIES

Welding Apparel

WELDCAP
WELDGLOVE Graphic
Welding Gloves WELDGLOVE
• 1 pc leather WELDCAP Welding Cap
• Full lining protects hands from excessive heat, • Made from flame-retardant material
spatter and sparks • Resists sparks and absorbs perspiration
• Soft cotton interior for extra comfort • Material conforms to ASTM D6413-13b test method
• AB-grade leather material is tough enough to handle • Proprietary ink injection process helps to keep
rugged jobs silk-screened graphics from peeling and flaking
• Extended cuff shields the wrist when welding and
protects against extreme temperatures

657
• Wear face shield and protective clothing while welding and cutting
• Do not allow bystanders while welding and cutting
• Read safety precautions on pages W1 to W4
