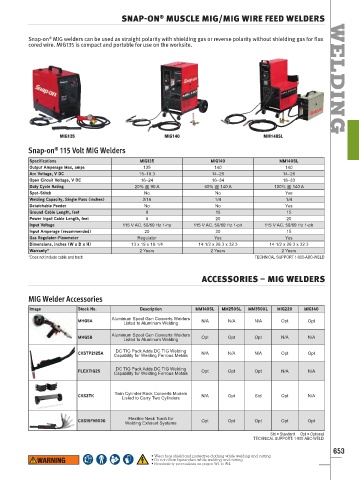

SNAP-ON MUSCLE MIG/MIG WIRE FEED WELDERS

®
Snap-on MIG welders can be used as straight polarity with shielding gas or reverse polarity without shielding gas for flux
cored wire. MIG135 is compact and portable for use on the worksite. WELDING

MIG135 MIG140 MM140SL
®
Snap-on 115 Volt MIG Welders
Specifications MIG135 MIG140 MM140SL
Output Amperage Max, amps 135 140 140
Arc Voltage, V DC 15–18.3 14–26 14–26
Open Circuit Voltage, V DC 16–24 16–34 18–33
Duty Cycle Rating 20% @ 90 A 60% @ 140 A 100% @ 140 A
Spot-Stitch No No Yes
Welding Capacity, Single Pass (inches) 3/16 1/4 1/4
Detatchable Feeder No No Yes
Ground Cable Length, feet 8 10 15
Power Input Cable Length, feet 6 20 20
Input Voltage 115 V AC, 50/60 Hz 1-hp 115 V AC, 50/60 Hz 1-ph 115 V AC, 50/60 Hz 1-ph
Input Amperage (recommended) 20 30 15
Gas Regulator-Flowmeter Regulator Yes Yes
Dimensions, inches (W x D x H) 13 x 19 x 18-1/4 14-1/2 x 26.3 x 32.3 14-1/2 x 26.3 x 32.3
Warranty* 2 Years 2 Years 2 Years
*Does not include cable and torch TECHNICAL SUPPORT 1-800-ABC-WELD

ACCESSORIES – MIG WELDERS

MIG Welder Accessories
Image Stock No. Description MM140SL MM250SL MM350XL MIG220 MIG140
Aluminum Spool Gun Converts Welders
MHG5A Listed to Aluminum Welding N/A N/A N/A Opt Opt
Aluminum Spool Gun Converts Welders
MHG5B Listed to Aluminum Welding Opt Opt Opt N/A N/A
DC TIG Pack Adds DC TIG Welding
CKSTP2125A Capability for Welding Ferrous Metals N/A N/A N/A Opt Opt

DC TIG Pack Adds DC TIG Welding
FLEXTIG25 Capability for Welding Ferrous Metals Opt Opt Opt N/A N/A

Twin Cylinder Rack Converts Models
CKS2TK Listed to Carry Two Cylinders N/A Opt Std Opt N/A

Flexible Neck Torch for
CKS15FN1030 Opt Opt Opt Opt Opt
Welding Exhaust Systems
Std = Standard Opt = Optional
TECHNICAL SUPPORT: 1-800-ABC-WELD

653
• Wear face shield and protective clothing while welding and cutting
• Do not allow bystanders while welding and cutting
• Read safety precautions on pages W1 to W4
