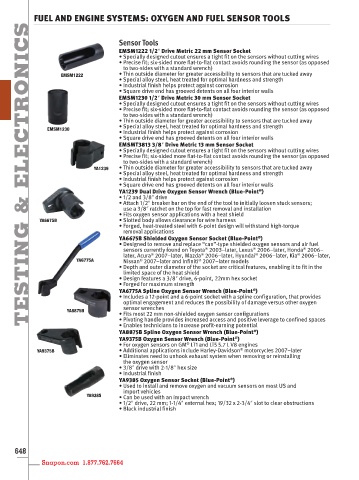

FUEL AND ENGINE SYSTEMS: OXYGEN AND FUEL SENSOR TOOLS
ELECTRONICS

Sensor Tools
EMSM1222 1/2ʺ Drive Metric 22 mm Sensor Socket
• Specially designed cutout ensures a tight fit on the sensors without cutting wires
• Precise fit; six-sided more flat-to-flat contact avoids rounding the sensor (as opposed
to two-sides with a standard wrench)
• Thin outside diameter for greater accessibility to sensors that are tucked away
EMSM1222
• Special alloy steel, heat treated for optimal hardness and strength
• Industrial finish helps protect against corrosion
• Square drive end has grooved detents on all four interior walls
EMSM1230 1/2ʺ Drive Metric 30 mm Sensor Socket
• Specially designed cutout ensures a tight fit on the sensors without cutting wires
• Precise fit; six-sided more flat-to-flat contact avoids rounding the sensor (as opposed
to two-sides with a standard wrench)
• Thin outside diameter for greater accessibility to sensors that are tucked away
• Special alloy steel, heat treated for optimal hardness and strength
EMSM1230
• Industrial finish helps protect against corrosion
• Square drive end has grooved detents on all four interior walls
EMSMT3813 3/8ʺ Drive Metric 13 mm Sensor Socket
• Specially designed cutout ensures a tight fit on the sensors without cutting wires
• Precise fit; six-sided more flat-to-flat contact avoids rounding the sensor (as opposed
to two-sides with a standard wrench)
YA1239 • Thin outside diameter for greater accessibility to sensors that are tucked away
• Special alloy steel, heat treated for optimal hardness and strength
• Industrial finish helps protect against corrosion
• Square drive end has grooved detents on all four interior walls
YA1239 Dual Drive Oxygen Sensor Wrench (Blue-Point )
®
• 1/2 and 3/8ʺ drive
& • Attach 1/2ʺ breaker bar on the end of the tool to initially loosen stuck sensors;
use a 3/8ʺ ratchet on the top for fast removal and installation
• Fits oxygen sensor applications with a heat shield
YA6675B • Slotted body allows clearance for wire harness ®
TESTING YA6775A • Depth and outer diameter of the socket are critical features, enabling it to fit in the
• Forged, heat-treated steel with 6-point design will withstand high-torque
removal applications
YA6675B Shielded Oxygen Sensor Socket (Blue-Point )
• Designed to remove and replace “can”-type shielded oxygen sensors and air fuel
®
®
®
sensors currently found on Toyota 2003–later, Lexus 2006–later, Honda 2006–
®
®
®
®
later, Acura 2007–later, Mazda 2006–later, Hyundai 2006–later, Kia 2006–later,
®
®
Nissan 2007–later and Infiniti 2007–later models
limited space of the heat shield
• Design features a 3/8ʺ drive, 6-point, 22mm hex socket
• Forged for maximum strength
®
YA6775A Spline Oxygen Sensor Wrench (Blue-Point )
• Includes a 12-point and a 6-point socket with a spline configuration, that provides
optimal engagement and reduces the possibility of damage versus other oxygen
sensor wrenches
YA8875B
• Fits most 22 mm non-shielded oxygen sensor configurations
• Pivoting handle provides increased access and positive leverage to confined spaces
• Enables technicians to increase profit-earning potential
YA8875B Spline Oxygen Sensor Wrench (Blue-Point )
®
®
YA9375B Oxygen Sensor Wrench (Blue-Point )
®
• For oxygen sensors on GM LT1 and LT5 5.7 L V8 engines
®
YA9375B • Additional applications include Harley-Davidson motorcycles 2007–later
• Eliminates need to unhook exhaust system when removing or reinstalling
the oxygen sensor
• 3/8ʺ drive with 2-1/8ʺ hex size
• Industrial finish
®
YA9385 Oxygen Sensor Socket (Blue-Point )
• Used to install and remove oxygen and vacuum sensors on most US and
import vehicles
YA9385
• Can be used with an impact wrench
• 1/2ʺ drive, 22 mm; 1-1/4ʺ external hex; 19/32 x 2-3/4ʺ slot to clear obstructions
• Black industrial finish
