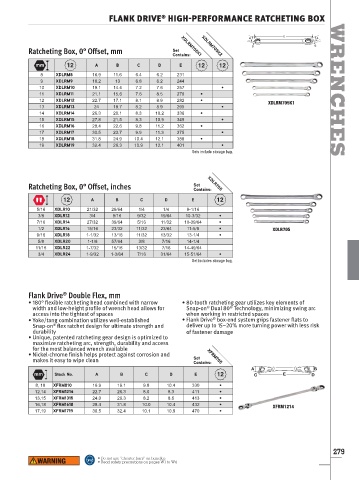

FLANK DRIVE HIGH-PERFORMANCE RATCHETING BOX

Ratcheting Box, 0° Offset, mm Set XDLRM705K1 XDLRM705K2
Contains:
A B C D E

8 XDLRM8 16.9 11.6 6.4 6.2 231
9 XDLRM9 18.2 13 6.8 6.2 244
10 XDLRM10 19.1 14.4 7.2 7.6 257 • WRENCHES
11 XDLRM11 21.1 15.6 7.6 8.5 270 •
12 XDLRM12 22.7 17.1 8.1 8.9 282 • XDLRM705K1
13 XDLRM13 24 18.7 8.2 8.9 295 •
14 XDLRM14 26.3 20.1 8.3 10.2 336 •
15 XDLRM15 27.8 21.5 8.3 10.9 349 •
16 XDLRM16 28.4 22.6 9.8 11.2 362 •
17 XDLRM17 30.5 23.7 9.9 11.3 375 •
18 XDLRM18 31.8 24.9 10.4 12.1 388 •
19 XDLRM19 32.4 26.3 10.9 12.1 401 •
Sets include storage bag.

Ratcheting Box, 0° Offset, inches Set XDLR705
Contains:
A B C D E
5/16 XDLR10 21/32 29/64 1/4 1/4 9-1/16
3/8 XDLR12 3/4 9/16 9/32 19/64 10-3/32 •
7/16 XDLR14 27/32 39/64 5/16 11/32 10-39/64 •
1/2 XDLR16 15/16 23/32 11/32 23/64 11-5/8 • XDLR705
9/16 XDLR18 1-1/32 13/16 11/32 13/32 13-1/4 •
5/8 XDLR20 1-1/8 57/64 3/8 7/16 14-1/4
11/16 XDLR22 1-7/32 15/16 13/32 7/16 14-49/64
3/4 XDLR24 1-9/32 1-3/64 7/16 31/64 15-51/64 •
Set includes storage bag.

®
Flank Drive Double Flex, mm
• 180° flexible ratcheting head combined with narrow • 80-tooth ratcheting gear utilizes key elements of
width and low-height profile of wrench head allows for Snap-on Dual 80 Technology, minimizing swing arc
®
®
access into the tightest of spaces when working in restricted spaces
®
• Yoke/tang combination utilizes well-established • Flank Drive box-end system grips fastener flats to
®
Snap-on flex ratchet design for ultimate strength and deliver up to 15–20% more turning power with less risk
durability of fastener damage
• Unique, patented ratcheting gear design is optimized to
maximize ratcheting arc, strength, durability and access
for the most balanced wrench available
• Nickel-chrome finish helps protect against corrosion and XFRM705
makes it easy to wipe clean Set
Contains:
Stock No. A B C D E
8, 10 XFRM810 16.9 19.1 9.8 10.4 330 •
12,14 XFRM1214 22.7 26.3 8.0 8.3 411 •
13,15 XFRM1315 24.0 26.3 8.2 8.6 413 •
16,18 XFRM1618 28.4 31.8 10.0 10.4 432 • XFRM1214
17,19 XFRM1719 30.5 32.4 10.1 10.9 470 •

279
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
