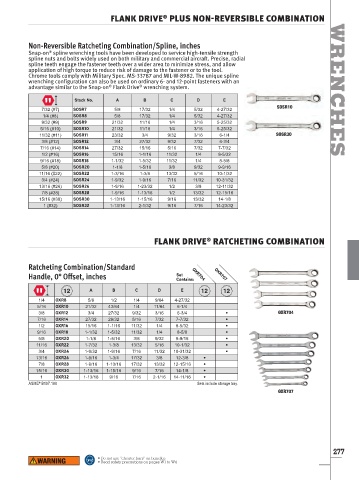

FLANK DRIVE PLUS NON-REVERSIBLE COMBINATION

Non-Reversible Ratcheting Combination/Spline, inches
®
Snap-on spline wrenching tools have been developed to service high-tensile strength
spline nuts and bolts widely used on both military and commercial aircraft. Precise, radial
spline teeth engage the fastener teeth over a wider area to minimize stress, and allow
application of high torque to reduce risk of damage to the fastener or to the tool.
Chrome tools comply with Military Spec. MS-33787 and MIL-W-8982. The unique spline
wrenching configuration can also be used on ordinary 6- and 12-point fasteners with an
®
®
advantage similar to the Snap-on Flank Drive wrenching system. WRENCHES
Stock No. A B C D E
7/32 (#7) SOSR7 5/8 17/32 1/4 5/32 4-27/32 SOSR10
1/4 (#8) SOSR8 5/8 17/32 1/4 5/32 4-27/32
9/32 (#9) SOSR9 21/32 11/16 1/4 3/16 5-25/32
5/16 (#10) SOSR10 21/32 11/16 1/4 3/16 5-25/32
11/32 (#11) SOSR11 23/32 3/4 9/32 3/16 6-1/4 SOSR30
3/8 (#12) SOSR12 3/4 27/32 9/32 7/32 6-3/4
7/16 (#14) SOSR14 27/32 15/16 5/16 7/32 7-7/32
1/2 (#16) SOSR16 15/16 1-1/16 11/32 1/4 8-5/32
9/16 (#18) SOSR18 1-1/32 1-5/32 11/32 1/4 8-5/8
5/8 (#20) SOSR20 1-1/8 1-5/16 3/8 9/32 9-9/16
11/16 (#22) SOSR22 1-3/16 1-3/8 13/32 5/16 10-1/32
3/4 (#24) SOSR24 1-9/32 1-9/16 7/16 11/32 10-31/32
13/16 (#26) SOSR26 1-9/16 1-23/32 1/2 3/8 12-11/32
7/8 (#28) SOSR28 1-9/16 1-13/16 1/2 13/32 12-15/16
15/16 (#30) SOSR30 1-13/16 1-15/16 9/16 13/32 14-1/8
1 (#32) SOSR32 1-13/16 2-1/32 9/16 7/16 14-23/32

®
FLANK DRIVE RATCHETING COMBINATION

Ratcheting Combination/Standard
Handle, 0° Offset, inches Set OXR704 OXR707
Contains:
A B C D E
1/4 OXR8 5/8 1/2 1/4 9/64 4-27/32
5/16 OXR10 21/32 43/64 1/4 11/64 6-1/4
3/8 OXR12 3/4 27/32 9/32 3/16 6-3/4 • OXR704
7/16 OXR14 27/32 29/32 5/16 7/32 7-7/32 •
1/2 OXR16 15/16 1-1/16 11/32 1/4 8-5/32 •
9/16 OXR18 1-1/32 1-5/32 11/32 1/4 8-5/8 •
5/8 OXR20 1-1/8 1-5/16 3/8 9/32 9-9/16 •
11/16 OXR22 1-7/32 1-3/8 13/32 5/16 10-1/32 •
3/4 OXR24 1-9/32 1-9/16 7/16 11/32 10-31/32 •
13/16 OXR26 1-9/16 1-3/4 17/32 3/8 12-3/8 •
7/8 OXR28 1-9/16 1-13/16 17/32 13/32 12-15/16 •
15/16 OXR30 1-13/16 1-15/16 9/16 7/16 14-1/8 •
1 OXR32 1-13/16 9/16 7/16 2-1/16 14-11/16 •
®
ASME B107.100 Sets include storage tray.
OXR707

277
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
