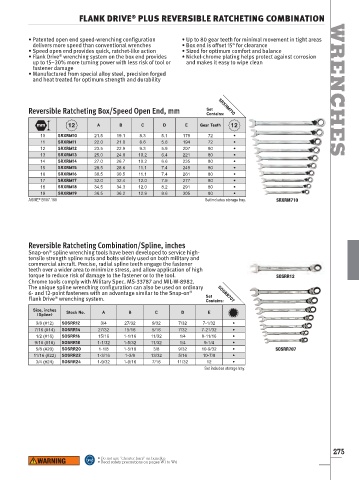

FLANK DRIVE PLUS REVERSIBLE RATCHETING COMBINATION

• Patented open end speed-wrenching configuration • Up to 80 gear teeth for minimal movement in tight areas
delivers more speed than conventional wrenches • Box end is offset 15° for clearance
• Speed open end provides quick, ratchet-like action • Sized for optimum comfort and balance
®
• Flank Drive wrenching system on the box end provides • Nickel-chrome plating helps protect against corrosion
up to 15–20% more turning power with less risk of tool or and makes it easy to wipe clean
fastener damage
• Manufactured from special alloy steel, precision forged
and heat treated for optimum strength and durability WRENCHES

Reversible Ratcheting Box/Speed Open End, mm Set SRXRM710
Contains:
A B C D E Gear Teeth
10 SRXRM10 21.5 19.1 8.3 5.1 179 72 •
11 SRXRM11 22.0 21.0 8.6 5.6 194 72 •
12 SRXRM12 23.5 22.9 9.3 5.9 207 80 •
13 SRXRM13 25.0 24.8 10.2 6.4 221 80 •
14 SRXRM14 27.0 26.7 10.2 6.6 235 80 •
15 SRXRM15 28.5 28.6 11.1 7.4 249 80 •
16 SRXRM16 30.5 30.5 11.1 7.4 261 80 •
17 SRXRM17 32.0 32.4 12.0 7.9 277 80 •
18 SRXRM18 34.5 34.3 12.0 8.2 291 80 •
19 SRXRM19 36.5 36.2 12.9 8.6 305 80 •
®
ASME B107.100 Set includes storage tray. SRXRM710

Reversible Ratcheting Combination/Spline, inches
®
Snap-on spline wrenching tools have been developed to service high-
tensile strength spline nuts and bolts widely used on both military and
commercial aircraft. Precise, radial spline teeth engage the fastener
teeth over a wider area to minimize stress, and allow application of high
torque to reduce risk of damage to the fastener or to the tool. SOSRR12
Chrome tools comply with Military Spec. MS-33787 and MIL-W-8982.
The unique spline wrenching configuration can also be used on ordinary
6- and 12-point fasteners with an advantage similar to the Snap-on Set SOSRR707
®
Flank Drive wrenching system. Contains:
®
Size, inches Stock No. A B C D E
(Spline)
3/8 (#12) SOSRR12 3/4 27/32 9/32 7/32 7-1/32 •
7/16 (#14) SOSRR14 27/32 15/16 5/16 7/32 7-21/32 •
1/2 (#16) SOSRR16 15/16 1-1/16 11/32 1/4 8-11/16 •
9/16 (#18) SOSRR18 1-1/32 1-5/32 11/32 1/4 9-1/4 •
5/8 (#20) SOSRR20 1-1/8 1-5/16 3/8 9/32 10-9/32 • SOSRR707
11/16 (#22) SOSRR22 1-3/16 1-3/8 13/32 5/16 10-7/8 •
3/4 (#24) SOSRR24 1-9/32 1-9/16 7/16 11/32 12 •
Set includes storage tray.

275
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
