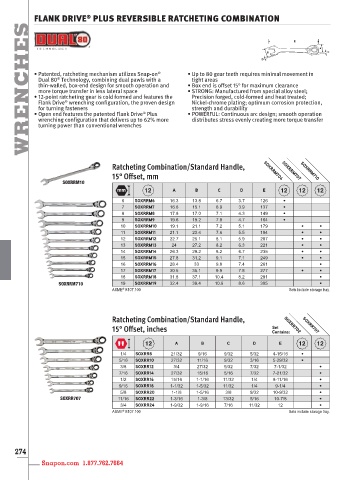

FLANK DRIVE PLUS REVERSIBLE RATCHETING COMBINATION
WRENCHES

• Patented, ratcheting mechanism utilizes Snap-on • Up to 80 gear teeth requires minimal movement in
®
Dual 80 Technology, combining dual pawls with a tight areas
®
thin-walled, box-end design for smooth operation and • Box end is offset 15° for maximum clearance
more torque transfer in less lateral space • STRONG: Manufactured from special alloy steel;
• 12-point ratcheting gear is cold formed and features the Precision forged, cold-formed and heat treated;
Flank Drive wrenching configuration, the proven design Nickel-chrome plating; optimum corrosion protection,
®
for turning fasteners strength and durability
• Open end features the patented Flank Drive Plus • POWERFUL: Continuous arc design; smooth operation
®
wrenching configuration that delivers up to 62% more distributes stress evenly creating more torque transfer
turning power than conventional wrenches

Ratcheting Combination/Standard Handle, SOXRRM704 SOXRRM707 SOXRRM710
15° Offset, mm
SOXRRM10
A B C D E
6 SOXRRM6 16.3 13.8 6.7 3.7 126 •
7 SOXRRM7 16.8 15.1 6.9 3.9 137 •
8 SOXRRM8 17.8 17.0 7.1 4.3 149 •
9 SOXRRM9 19.6 19.2 7.9 4.7 164 •
10 SOXRRM10 19.1 21.1 7.2 5.1 179 • •
11 SOXRRM11 21.1 23.4 7.6 5.5 194 • •
12 SOXRRM12 22.7 25.1 8.1 5.9 207 • •
13 SOXRRM13 24 27.2 8.2 6.3 221 • •
14 SOXRRM14 26.3 29.2 8.2 6.7 235 • •
15 SOXRRM15 27.8 31.2 9.1 7.1 249 • •
16 SOXRRM16 28.4 33 9.8 7.4 261 •
17 SOXRRM17 30.5 35.1 9.9 7.8 277 • •
18 SOXRRM18 31.8 37.1 10.4 8.2 291 •
SOXRRM710 19 SOXRRM19 32.4 39.4 10.9 8.6 305 •
®
ASME B107.100 Sets include storage tray.

Ratcheting Combination/Standard Handle,
15° Offset, inches Set SOXRR702 SOXRR707
Contains:
A B C D E
1/4 SOXRR8 21/32 9/16 9/32 5/32 4-15/16 •
5/16 SOXRR10 27/32 11/16 9/32 3/16 5-29/32 •
3/8 SOXRR12 3/4 27/32 9/32 7/32 7-1/32 •
7/16 SOXRR14 27/32 15/16 5/16 7/32 7-21/32 •
1/2 SOXRR16 15/16 1-1/16 11/32 1/4 8-11/16 •
9/16 SOXRR18 1-1/32 1-5/32 11/32 1/4 9-1/4 •
5/8 SOXRR20 1-1/8 1-5/16 3/8 9/32 10-9/32 •
SOXRR707 11/16 SOXRR22 1-3/16 1-3/8 13/32 5/16 10-7/8 •
3/4 SOXRR24 1-9/32 1-9/16 7/16 11/32 12 •
®
ASME B107.100 Sets include storage tray.
