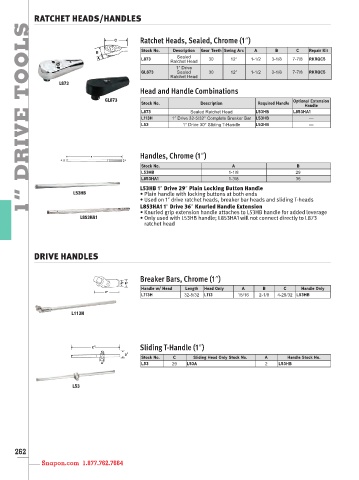

RATCHET HEADS/HANDLES
TOOLS Ratchet Heads, Sealed, Chrome (1ʺ) 1-1/2 3-1/8 7-7/8 Repair Kit

Gear Teeth Swing Arc
A
C
B
Description
Stock No.
Sealed
30
12°
RKRQC5
L873
Ratchet Head
1ʺ Drive
3-1/8
Sealed
7-7/8
12°
1-1/2
30
RKRQC5
GL873
Ratchet Head
L873
GL873 Head and Handle Combinations Optional Extension
Stock No. Description Required Handle
Handle
DRIVE Handles, Chrome (1ʺ) A L53HB B —
Sealed Ratchet Head
L53HB
L853HA1
L873
—
1ʺ Drive 32-5/32ʺ Complete Breaker Bar
L113H
L53HB
1ʺ Drive 30ʺ Sliding T-Handle
L53
Stock No.
1-1/8
L53HB
36
1-3/8
L853HA1
L53HB 1ʺ Drive 29ʺ Plain Locking Button Handle 29
1” • Used on 1ʺ drive ratchet heads, breaker bar heads and sliding T-heads
L53HB
• Plain handle with locking buttons at both ends
L853HA1 1ʺ Drive 36ʺ Knurled Handle Extension
L853HA1 • Knurled grip extension handle attaches to L53HB handle for added leverage
• Only used with L53HB handle; L853HA1 will not connect directly to L873
ratchet head
DRIVE HANDLES
Breaker Bars, Chrome (1ʺ)
A" B"
Handle w/ Head Length Head Only A B C Handle Only
C"
L113H 32-5/32 L113 15/16 2-1/8 4-29/32 L53HB
L113H
Sliding T-Handle (1ʺ)
Stock No. C Sliding Head Only Stock No. A Handle Stock No.
L53 29 L53A 2 L53HB

L53

262
