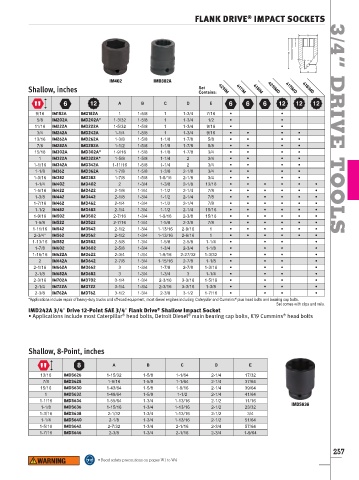

FLANK DRIVE IMPACT SOCKETS 3/4”
®

IM402 IMD302A
Shallow, inches Set 429IM 417IM 418IM 429IMD 417IMD 418IMD
Contains:
A B C D E
9/16 IM182A IMD182A 1 1-5/8 1 1-3/4 7/16 • • DRIVE
5/8 IM202A IMD202A* 1-3/32 1-5/8 1 1-3/4 1/2 • •
11/16 IM222A IMD222A 1-5/32 1-5/8 1 1-3/4 9/16 • •
3/4 IM242A IMD242A 1-1/4 1-5/8 1 1-3/4 9/16 • • • •
13/16 IM262A IMD262A 1-3/8 1-5/8 1-1/8 1-7/8 5/8 • • • •
7/8 IM282A IMD282A 1-1/2 1-5/8 1-1/8 1-7/8 5/8 • • • •
15/16 IM302A IMD302A* 1-9/16 1-5/8 1-1/8 1-7/8 3/4 • • • •
1 IM322A IMD322A* 1-5/8 1-5/8 1-1/4 2 3/4 • • • •
1-1/16 IM342A IMD342A 1-11/16 1-5/8 1-1/4 2 3/4 • • • •
1-1/8 IM362 IMD362A 1-7/8 1-5/8 1-3/8 2-1/8 3/4 • • • •
1-3/16 IM382 IMD382 1-7/8 1-5/8 1-5/16 2-1/8 3/4 • • • •
1-1/4 IM402 IMD402 2 1-3/4 1-3/8 2-1/8 13/16 • • • • • •
1-5/16 IM422 IMD422 2-1/8 1-3/4 1-1/2 2-1/4 7/8 • • • • • •
1-3/8 IM442 IMD442 2-1/8 1-3/4 1-1/2 2-1/4 7/8 • • • • • • TOOLS
1-7/16 IM462 IMD462 2-1/4 1-3/4 1-1/2 2-1/4 7/8 • • • • • •
1-1/2 IM482 IMD482 2-1/4 1-3/4 1-1/2 2-1/4 15/16 • • • • • •
1-9/16 IM502 IMD502 2-7/16 1-3/4 1-9/16 2-3/8 15/16 • • • • • •
1-5/8 IM522 IMD522 2-7/16 1-3/4 1-5/8 2-3/8 7/8 • • • • • •
1-11/16 IM542 IMD542 2-1/2 1-3/4 1-13/16 2-9/16 1 • • • • • •
2-3/4ʺ IM562 IMD562 2-1/2 1-3/4 1-13/16 2-9/16 1 • • • • • •
1-13/16 IM582 IMD582 2-5/8 1-3/4 1-5/8 2-5/8 1-1/4 • • • •
1-7/8 IM602 IMD602 2-5/8 1-3/4 1-3/4 2-3/4 1-1/8 • • • •
1-15/16 IM622A IMD622 2-3/4 1-3/4 1-9/16 2-27/32 1-3/32 • • • •
2 IM642A IMD642 2-7/8 1-3/4 1-15/16 2-7/8 1-1/8 • • • •
2-1/16 IM662A IMD662 3 1-3/4 1-7/8 2-7/8 1-3/16 • • • •
2-1/8 IM682A IMD682 3 1-3/4 1-3/4 3 1-1/4 • • • •
2-3/16 IM702A IMD702 3-1/4 1-3/4 2-3/16 3-3/16 1-5/16 • • • •
2-1/4 IM722A IMD722 3-1/4 1-3/4 2-3/16 3-3/16 1-3/8 • • • •
2-3/8 IM762A IMD762 3-1/2 1-3/4 2-3/8 3-1/2 1-7/16 • • • •
*Applications include repair of heavy-duty trucks and off-road equipment, most diesel engines including Caterpillar and Cummins plus head bolts and bearing cap bolts.
®
Set comes with clips and rails.
®
IMD242A 3/4ʺ Drive 12-Point SAE 3/4ʺ Flank Drive Shallow Impact Socket
®
®
®
• Applications include most Caterpillar head bolts, Detroit Diesel main bearing cap bolts, K19 Cummins head bolts
Shallow, 8-Point, inches

A B C D E
13/16 IMDS626 1-15/32 1-5/8 1-1/64 2-1/4 17/32
7/8 IMDS628 1-9/16 1-5/8 1-1/64 2-1/4 37/64
15/16 IMDS630 1-43/64 1-5/8 1-9/16 2-1/4 39/64
1 IMDS632 1-49/64 1-5/8 1-1/2 2-1/4 41/64
1-1/16 IMDS634 1-55/64 1-3/4 1-13/16 2-1/2 11/16 IMDS636
1-1/8 IMDS636 1-15/16 1-3/4 1-13/16 2-1/2 23/32
1-3/16 IMDS638 2-1/32 1-3/4 1-13/16 2-1/2 3/4
1-1/4 IMDS640 2-1/8 1-3/4 1-13/16 2-1/2 51/64
1-5/16 IMDS642 2-7/32 1-3/4 2-1/16 2-3/4 57/64
1-7/16 IMDS646 2-3/8 1-3/4 2-1/16 2-3/4 1-9/64

257
• Read safety precautions on pages W1 to W4
