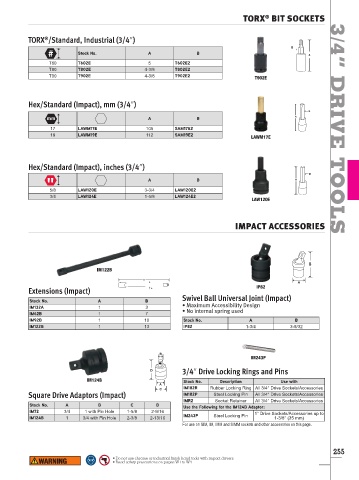

TORX BIT SOCKETS

®
TORX /Standard, Industrial (3/4ʺ) 3/4”
Stock No. A B
T60 T602E 5 T602E2
T80 T802E 4-3/8 T802E2
T90 T902E 4-3/8 T902E2
T902E

Hex/Standard (Impact), mm (3/4ʺ)

A B DRIVE
17 LAWM17E 105 SAM17E2
19 LAWM19E 112 SAM19E2
LAWM17E

Hex/Standard (Impact), inches (3/4ʺ)

A B
5/8 LAW120E 3-3/4 LAW120E2
3/4 LAW124E 1-5/8 LAW124E2 TOOLS
LAW120E

IMPACT ACCESSORIES

IM122B

IP82
Extensions (Impact)
Swivel Ball Universal Joint (Impact)
Stock No. A B
IM132A 1 3 • Maximum Accessibility Design
IM62B 1 7 • No internal spring used
IM92B 1 10 Stock No. A B
IM122B 1 13 IP82 1-3/4 3-5/32

IM243P
3/4ʺ Drive Locking Rings and Pins
IM124B Stock No. Description Use with
IM182R Rubber Locking Ring All 3/4ʺ Drive Sockets/Accessories
Square Drive Adaptors (Impact) IM182P Steel Locking Pin All 3/4ʺ Drive Sockets/Accessories
IMR2 Socket Retainer All 3/4ʺ Drive Sockets/Accessories
Stock No. A B C D
Use the Following for the IM124B Adaptor:
IM72 3/4 1 with Pin Hole 1-5/8 2-9/16 1ʺ Drive Sockets/Accessories up to
IM124B 1 3/4 with Pin Hole 2-3/8 2-13/16 IM243P Steel Locking Pin 1-3/8ʺ (35 mm)
For use on SIM, IM, IMM and SIMM sockets and other accessories on this page.

255
• Do not use chrome or industrial finish hand tools with impact drivers
• Read safety precautions on pages W1 to W4
