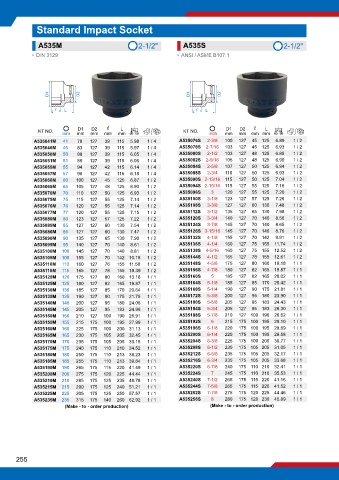

Standard Impact Socket
A535M 2-1/2" A535S 2-1/2"
• DIN 3129 • ANSI / ASME B107.1
D1 D2 D1 D2
l L l L
D1
D2
D1
D2
L
L
ℓ
ℓ
KT NO. mm mm mm mm mm Kg KT NO. inch mm mm mm mm Kg
A535041M 41 78 127 39 115 5.98 1 / 4 A535076S 2-3/8 100 127 45 125 6.89 1 / 2
A535046M 46 83 127 39 115 5.97 1 / 4 A535078S 2-7/16 103 127 45 125 6.93 1 / 2
A535050M 50 88 127 39 115 6.05 1 / 4 A535080S 2-1/2 103 127 48 125 6.85 1 / 2
A535051M 51 89 127 39 115 6.06 1 / 4 A535082S 2-9/16 105 127 48 125 6.90 1 / 2
A535055M 55 94 127 42 115 6.14 1 / 4 A535084S 2-5/8 107 127 50 125 6.94 1 / 2
A535057M 57 96 127 42 115 6.18 1 / 4 A535088S 2-3/4 110 127 50 125 6.93 1 / 2
A535060M 60 100 127 45 125 6.87 1 / 2 A535090S 2-13/16 115 127 50 125 7.04 1 / 2
A535065M 65 105 127 48 125 6.90 1 / 2 A535094S 2-15/16 115 127 55 125 7.16 1 / 2
A535070M 70 110 127 50 125 6.93 1 / 2 A535096S 3 120 127 55 125 7.20 1 / 2
A535075M 75 115 127 55 125 7.14 1 / 2 A535100S 3-1/8 123 127 57 125 7.26 1 / 2
A535076M 76 120 127 55 125 7.14 1 / 2 A535108S 3-3/8 127 127 60 130 7.48 1 / 2
A535077M 77 120 127 55 125 7.15 1 / 2 A535112S 3-1/2 135 127 65 130 7.98 1 / 2
A535080M 80 123 127 57 125 7.22 1 / 2 A535120S 3-3/4 140 127 70 140 8.56 1 / 2
A535085M 85 127 127 60 130 7.54 1 / 2 A535124S 3-7/8 145 127 70 140 8.65 1 / 2
A535086M 86 127 127 60 130 7.47 1 / 2 A535126S 3-15/16 145 127 70 140 8.76 1 / 2
A535090M 90 135 127 65 130 7.90 1 / 2 A535132S 4-1/8 155 127 70 142 9.91 1 / 2
A535095M 95 140 127 70 140 8.61 1 / 2 A535136S 4-1/4 160 127 75 155 11.74 1 / 2
A535100M 100 145 127 70 140 8.81 1 / 2 A535138S 4-5/16 160 127 75 155 12.52 1 / 2
A535105M 105 155 127 70 142 10.18 1 / 2 A535144S 4-1/2 165 127 78 155 12.61 1 / 2
A535110M 110 160 127 76 155 11.50 1 / 2 A535148S 4-5/8 175 127 80 160 19.18 1 / 1
A535115M 115 165 127 78 155 18.39 1 / 2 A535156S 4-7/8 180 127 82 165 19.87 1 / 1
A535120M 120 175 127 80 160 13.18 1 / 1 A535160S 5 185 127 82 165 20.02 1 / 1
A535125M 125 180 127 82 165 19.87 1 / 1 A535164S 5-1/8 185 127 85 170 20.42 1 / 1
A535130M 130 185 127 85 170 20.64 1 / 1 A535168S 5-1/4 190 127 90 175 21.81 1 / 1
A535135M 135 190 127 90 175 21.75 1 / 1 A535172S 5-3/8 200 127 95 180 23.90 1 / 1
A535140M 140 200 127 95 180 24.06 1 / 1 A535180S 5-5/8 205 127 95 183 24.43 1 / 1
A535145M 145 205 127 95 183 24.96 1 / 1 A535184S 5-3/4 205 127 95 183 26.30 1 / 1
A535150M 150 210 127 100 190 26.91 1 / 1 A535188S 5-7/8 210 127 100 190 26.62 1 / 1
A535155M 155 215 175 100 195 27.99 1 / 1 A535192S 6 215 175 100 195 29.10 1 / 1
A535160M 160 225 175 100 200 31.13 1 / 1 A535196S 6-1/8 220 175 100 195 28.69 1 / 1
A535165M 165 230 175 105 205 32.45 1 / 1 A535200S 6-1/4 220 175 100 195 28.58 1 / 1
A535170M 170 235 175 105 205 33.15 1 / 1 A535204S 6-3/8 225 175 100 200 30.77 1 / 1
A535175M 175 240 175 110 210 34.52 1 / 1 A535208S 6-1/2 230 175 105 205 31.05 1 / 1
A535180M 180 250 175 110 213 38.23 1 / 1 A535212S 6-5/8 235 175 105 205 32.17 1 / 1
A535185M 185 255 175 110 213 39.84 1 / 1 A535216S 6-3/4 235 175 105 205 33.68 1 / 1
A535190M 190 265 175 115 220 41.49 1 / 1 A535220S 6-7/8 240 175 110 210 32.41 1 / 1
A535200M 200 275 175 120 225 44.44 1 / 1 A535224S 7 245 175 110 210 35.53 1 / 1
A535210M 210 285 175 125 235 48.78 1 / 1 A535240S 7-1/2 265 175 115 220 41.16 1 / 1
A535215M 215 290 175 125 240 51.21 1 / 1 A535244S 7-5/8 265 175 115 220 41.52 1 / 1
A535225M 225 305 175 135 250 57.57 1 / 1 A535252S 7-7/8 275 175 120 225 44.46 1 / 1
A535235M 235 315 175 140 260 62.92 1 / 1 A535256S 8 280 175 120 230 45.89 1 / 1
(Make - to - order production) (Make - to - order production)
