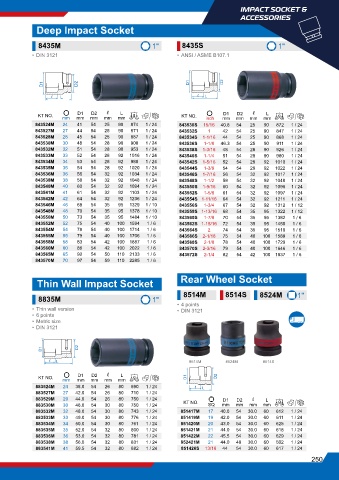

Page 291 - 蓝带金统立KINGTONY2025年样本

IMPACT SOCKET &
ACCESSORIES
Deep Impact Socket

8435M 1" 8435S 1"
• DIN 3121 • ANSI / ASME B107.1

D1 D2 D1 D2

l L l L

ℓ
L
D1
D2
D1
D2
ℓ
L
KT NO. mm mm mm mm mm g KT NO. inch mm mm mm mm g
843524M 24 41 54 25 90 874 1 / 24 843530S 15/16 40.8 54 25 90 872 1 / 24
843527M 27 44 54 25 90 871 1 / 24 843532S 1 42 54 25 90 847 1 / 24
843528M 28 45 54 25 90 887 1 / 24 843534S 1-1/16 44 54 25 90 868 1 / 24
843530M 30 48 54 28 90 908 1 / 24 843536S 1-1/8 46.3 54 25 90 911 1 / 24
843532M 32 51 54 28 90 953 1 / 24 843538S 1-3/16 48 54 28 90 926 1 / 24
843533M 33 52 54 28 92 1016 1 / 24 843540S 1-1/4 51 54 28 90 980 1 / 24
843534M 34 53 54 28 92 988 1 / 24 843542S 1-5/16 52 54 28 92 1010 1 / 24
843535M 35 54 54 28 92 1020 1 / 24 843544S 1-3/8 54 54 28 92 1022 1 / 24
843536M 36 56 54 32 92 1034 1 / 24 843546S 1-7/16 56 54 32 92 1017 1 / 24
843538M 38 58 54 32 92 1048 1 / 24 843548S 1-1/2 58 54 32 92 1048 1 / 24
843540M 40 60 54 32 92 1094 1 / 24 843550S 1-9/16 60 54 32 92 1096 1 / 24
843541M 41 61 54 32 92 1103 1 / 24 843552S 1-5/8 61 54 32 92 1097 1 / 24
843542M 42 64 54 32 92 1236 1 / 24 843554S 1-11/16 64 54 32 92 1211 1 / 24
843546M 46 68 54 35 95 1329 1 / 10 843556S 1-3/4 67 54 32 92 1312 1 / 12
843548M 48 70 54 35 95 1378 1 / 10 843558S 1-13/16 68 54 35 95 1322 1 / 12
843550M 50 73 54 35 95 1484 1 / 10 843560S 1-7/8 70 54 35 95 1382 1 / 6
843552M 52 75 54 40 100 1594 1 / 6 843562S 1-15/16 72 54 35 95 1450 1 / 6
843554M 54 78 54 40 100 1714 1 / 6 843564S 2 74 54 35 95 1510 1 / 6
843555M 55 79 54 40 100 1706 1 / 6 843566S 2-1/16 75 54 40 100 1589 1 / 6
843558M 58 83 54 42 100 1887 1 / 6 843568S 2-1/8 78 54 40 100 1729 1 / 6
843560M 60 86 54 42 100 2022 1 / 6 843570S 2-3/16 79 54 40 100 1646 1 / 6
843565M 65 92 54 50 110 2133 1 / 6 843572S 2-1/4 82 54 42 100 1837 1 / 6
843570M 70 97 54 59 110 2285 1 / 6

Thin Wall Impact Socket Rear Wheel Socket
8514M 8514S 8524M 1"
8835M 1"
• 4 points
• Thin wall version • DIN 3121
• 6 points
• Metric size
• DIN 3121

D1 D2
l L 8514M 8524M 8514S

D2
ℓ
L
D1
KT NO. mm mm mm mm mm g D1 D2
883524M 24 38.0 54 26 80 690 1 / 24 l L
883527M 27 42.0 54 26 80 710 1 / 24
883529M 29 44.0 54 26 80 750 1 / 24 D1 D2 ℓ L g
883530M 30 46.0 54 30 80 750 1 / 24 KT NO. SQ mm mm mm mm
883532M 32 48.0 54 30 80 743 1 / 24 851417M 17 40.0 54 30.0 60 612 1 / 24
883533M 33 49.0 54 30 80 776 1 / 24 851419M 19 42.0 54 30.0 60 611 1 / 24
883534M 34 50.0 54 30 80 761 1 / 24 851420M 20 43.0 54 30.0 60 625 1 / 24
883535M 35 52.0 54 32 80 800 1 / 24 851421M 21 44.0 54 30.0 60 618 1 / 24
883536M 36 53.0 54 32 80 781 1 / 24 851422M 22 45.5 54 30.0 60 629 1 / 24
883538M 38 56.0 54 32 80 831 1 / 24 852421M 21 44.0 48 30.0 60 502 1 / 24
883541M 41 59.5 54 32 80 882 1 / 24 851426S 13/16 44 54 30.0 60 617 1 / 24
