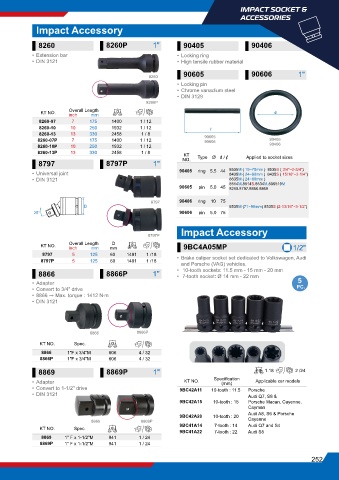

Page 293 - 蓝带金统立KINGTONY2025年样本

IMPACT SOCKET &
ACCESSORIES
Impact Accessory

8260 8260P 1" 90405 90406 1"
• Extension bar • Locking ring
• DIN 3121 • High tensile rubber material
90605 90606 1"
8260
• Locking pin
• Chrome vanadium steel
• DIN 3129
8260P
KT NO. Overall Length g d
inch mm
8260-07 7 175 1400 1 / 12
8260-10 10 250 1932 1 / 12 ℓ
8260-13 13 330 2458 1 / 8
8260-07P 7 175 1400 1 / 12 90605 90405
90606
8260-10P 10 250 1932 1 / 12 90406
8260-13P 13 330 2458 1 / 8 KT Type Ø d / Applied to socket sizes
8797 8797P 1" NO.
• Universal joint 90405 ring 5.5 44 8535M ( 19~70mm ) 8535S ( 3/4"~2-3/4")
8435M ( 24~60mm ) 8435S ( 15/16"~2-1/4")
• DIN 3121 8835M ( 24~60mm )
90605 pin 5.0 45 8514M.8514S.8534M.806519M
8260.8797.8866.8869

8797 90406 ring 10 75
D 8535M (71~90mm) 8535S (2-13/16"~3-1/2")
25° 90606 pin 5.0 75

Impact Accessory
8797P
D
KT NO. Overall Length mm g 9BC4A05MP 1/2"
inch mm
8797 5 125 60 1491 1 /18
8797P 5 125 60 1491 1 /18 • Brake caliper socket set dedicated to Volkswagen, Audi
and Porsche (VAG) vehicles.
8866 8866P 1" • 10-tooth sockets: 11.5 mm - 15 mm - 20 mm
• 7-tooth socket: Ø 14 mm - 22 mm
• Adapter 5
• Convert to 3/4" drive PC.
• 8866 → Max. torque : 1412 N‧m
• DIN 3121

8866 8866P

KT NO. Spec. g
8866 1"F x 3/4"M 606 4 / 32
8866P 1"F x 3/4"M 606 4 / 32
8869 8869P 1" kg 1.18 2 /24

• Adapter KT NO. Specification Applicable car models
(mm)
• Convert to 1-1/2" drive 9BC42A11 10-tooth : 11.5 Porsche
• DIN 3121 Audi Q7, S8 &
9BC42A15 10-tooth : 15 Porsche Macan, Cayenne,
Cayman
9BC42A20 10-tooth : 20 Audi A8, S6 & Porsche
8869 8869P Cayenne
KT NO. Spec. g 9BC41A14 7-tooth : 14 Audi Q7 and S4
9BC41A22 7-tooth : 22 Audi S5
8869 1" F x 1-1/2"M 941 1 / 24
8869P 1" F x 1-1/2"M 941 1 / 24

252
