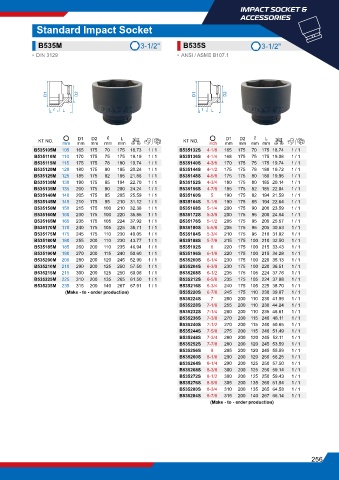

P. 297
IMPACT SOCKET &
ACCESSORIES
Standard Impact Socket
B535M 3-1/2" B535S 3-1/2"
• DIN 3129 • ANSI / ASME B107.1
D1 D2 D1 D2
l L l L
ℓ
L
D2
D1
L
ℓ
D2
D1
KT NO. mm mm mm mm mm Kg KT NO. inch mm mm mm mm Kg
B535105M 105 165 175 70 175 18.73 1 / 1 B535132S 4-1/8 165 175 70 175 18.74 1 / 1
B535110M 110 170 175 75 175 19.19 1 / 1 B535136S 4-1/4 168 175 75 175 19.08 1 / 1
B535115M 115 175 175 78 180 19.74 1 / 1 B535140S 4-3/8 170 175 75 175 19.74 1 / 1
B535120M 120 180 175 80 185 20.24 1 / 1 B535144S 4-1/2 175 175 78 180 19.72 1 / 1
B535125M 125 185 175 82 185 21.86 1 / 1 B535148S 4-5/8 175 175 80 180 19.95 1 / 1
B535130M 130 190 175 85 194 22.70 1 / 1 B535152S 4-3/4 180 175 80 185 20.14 1 / 1
B535135M 135 200 175 90 200 24.24 1 / 1 B535156S 4-7/8 185 175 82 185 22.04 1 / 1
B535140M 140 205 175 95 205 25.59 1 / 1 B535160S 5 190 175 82 194 21.59 1 / 1
B535145M 145 210 175 95 210 31.12 1 / 1 B535164S 5-1/8 190 175 85 194 22.64 1 / 1
B535150M 150 215 175 100 210 32.38 1 / 1 B535168S 5-1/4 200 175 90 200 23.59 1 / 1
B535160M 160 230 175 100 220 35.85 1 / 1 B535172S 5-3/8 200 175 95 200 24.64 1 / 1
B535165M 165 235 175 105 224 37.92 1 / 1 B535176S 5-1/2 205 175 95 205 25.57 1 / 1
B535170M 170 240 175 105 225 38.71 1 / 1 B535180S 5-5/8 205 175 95 205 30.53 1 / 1
B535175M 175 245 175 110 230 40.05 1 / 1 B535184S 5-3/4 210 175 95 210 31.92 1 / 1
B535180M 180 255 200 110 230 43.77 1 / 1 B535188S 5-7/8 215 175 100 210 32.50 1 / 1
B535185M 185 260 200 110 235 46.94 1 / 1 B535192S 6 220 175 100 215 33.43 1 / 1
B535190M 190 270 200 115 240 50.60 1 / 1 B535196S 6-1/8 220 175 100 215 34.28 1 / 1
B535200M 200 280 200 120 245 52.90 1 / 1 B535200S 6-1/4 230 175 100 220 35.13 1 / 1
B535210M 210 290 200 125 250 57.50 1 / 1 B535204S 6-3/8 230 175 100 220 36.51 1 / 1
B535215M 215 300 200 125 250 60.06 1 / 1 B535208S 6-1/2 235 175 105 224 37.76 1 / 1
B535225M 225 310 200 135 265 61.50 1 / 1 B535212S 6-5/8 235 175 105 224 37.98 1 / 1
B535235M 235 315 200 140 267 67.91 1 / 1 B535216S 6-3/4 240 175 105 225 38.70 1 / 1
(Make - to - order production) B535220S 6-7/8 245 175 110 230 39.87 1 / 1
B535224S 7 250 200 110 230 41.99 1 / 1
B535228S 7-1/8 255 200 110 230 44.24 1 / 1
B535232S 7-1/4 260 200 110 235 46.61 1 / 1
B535236S 7-3/8 270 200 115 240 48.11 1 / 1
B535240S 7-1/2 270 200 115 240 50.65 1 / 1
B535244S 7-5/8 275 200 115 240 51.49 1 / 1
B535248S 7-3/4 280 200 120 245 52.11 1 / 1
B535252S 7-7/8 280 200 120 245 53.59 1 / 1
B535256S 8 285 200 120 245 55.59 1 / 1
B535260S 8-1/8 290 200 120 250 56.25 1 / 1
B535264S 8-1/4 290 200 125 250 57.50 1 / 1
B535268S 8-3/8 300 200 125 250 59.14 1 / 1
B535272S 8-1/2 300 200 125 250 59.43 1 / 1
B535276S 8-5/8 305 200 135 260 61.94 1 / 1
B535280S 8-3/4 310 200 135 265 64.58 1 / 1
B535284S 8-7/8 315 200 140 267 66.14 1 / 1
(Make - to - order production)
256
