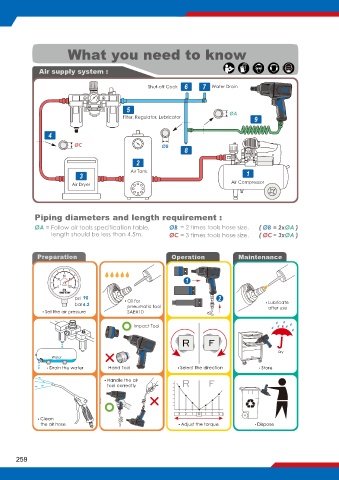

What you need to know

Air supply system :

Shut-off Cock Water Drain

ØA
Filter, Regulator, Lubricator

ØC ØB

Air Tank

Air Dryer Air Compressor

Piping diameters and length requirement :

ØA = Follow air tools specification table, ØB = 2 times tools hose size. ( ØB = 2xØA )
length should be less than 4.5m. ØC = 3 times tools hose size. ( ØC= 3xØA )

Preparation Operation Maintenance

4
3 5
2 60 6
30 90
1 7
0 120 8
0
psi 90
bar 6.2 Oil for ▪ Lubricate
pneumatic tool
after use
▪ Set the air pressure SAE#10
Impact Tool
32

Dry
Water
▪ Drain the water Hand Tool ▪ Select the direction ▪ Store

▪ Handle the air
tool correctly

3 2 1 0 1 2 3
▪ Clean
the air hose ▪ Adjust the torque ▪ Dispose
